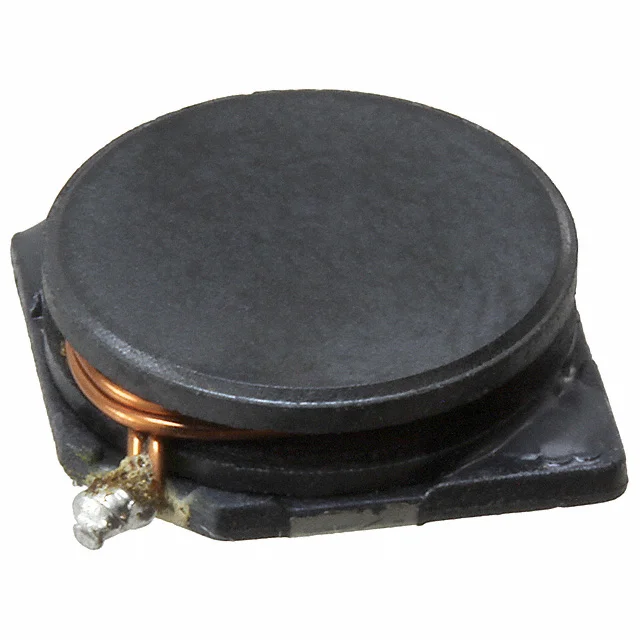

FIXED IND 47UH 960MA 270 MOHM
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 960 mA |
| DC Resistance (DCR) | 270mOhm Max |
| saturationCurrent | 1.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 960MA 270 MOHM |
| Series | SDR1030 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 10 @ 2.52MHz |
| selfResonantFreq | 14.2MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.130" (3.30mm) |
| features | - |
