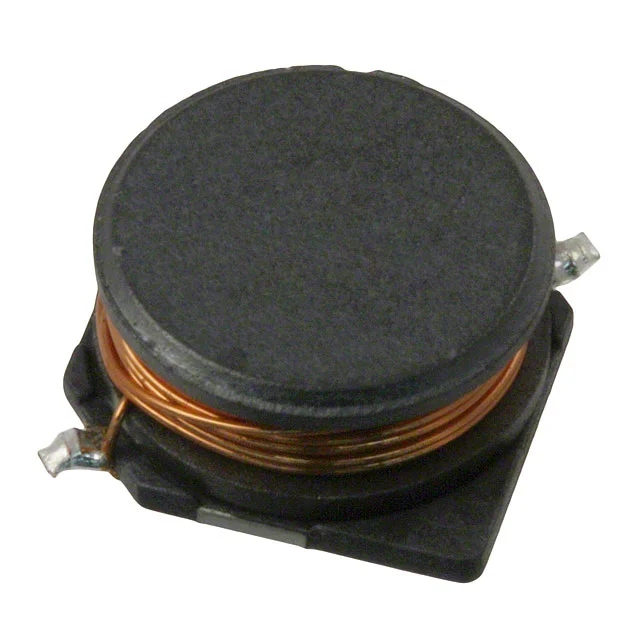

FIXED IND 680UH 430MA 3.3 OHM
| Inductance | 680 µH |
| Tolerance | ±10% |
| Current Rating | 430 mA |
| DC Resistance (DCR) | 3.3Ohm Max |
| saturationCurrent | 460mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.394" W (10.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680UH 430MA 3.3 OHM |
| Series | SDR1045 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 13 @ 796kHz |
| selfResonantFreq | 3.6MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.189" (4.80mm) |
| features | - |
