Description

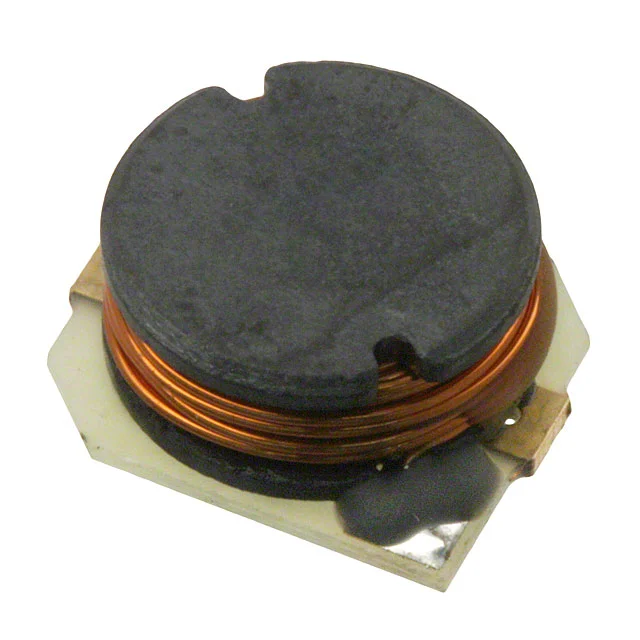

FIXED IND 150UH 1.2A 500 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR1105-151KL.
SDR1105-151KL has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR1105-151KL is rated for 1.2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR1105-151KL lists a DC resistance of 500mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR1105-151KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR1105-151KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 500mOhm Max |
| Saturation Current | 2.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.437" L x 0.394" W (11.10mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150UH 1.2A 500 MOHM |
| Series | SDR1105 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Features | - |
