Description

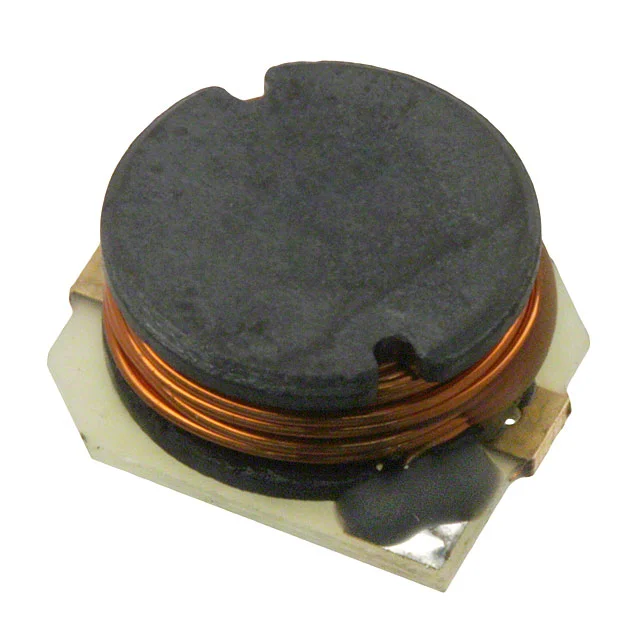

FIXED IND 39UH 2.4A 140 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR1105-390KL.
SDR1105-390KL has an inductance value of 39 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR1105-390KL is rated for 2.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR1105-390KL lists a DC resistance of 140mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR1105-390KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR1105-390KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 39 µH |
| Tolerance | ±10% |
| Current Rating | 2.4 A |
| DC Resistance (DCR) | 140mOhm Max |
| Saturation Current | 4.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.437" L x 0.394" W (11.10mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 39UH 2.4A 140 MOHM SMD |
| Series | SDR1105 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Features | - |
