Description

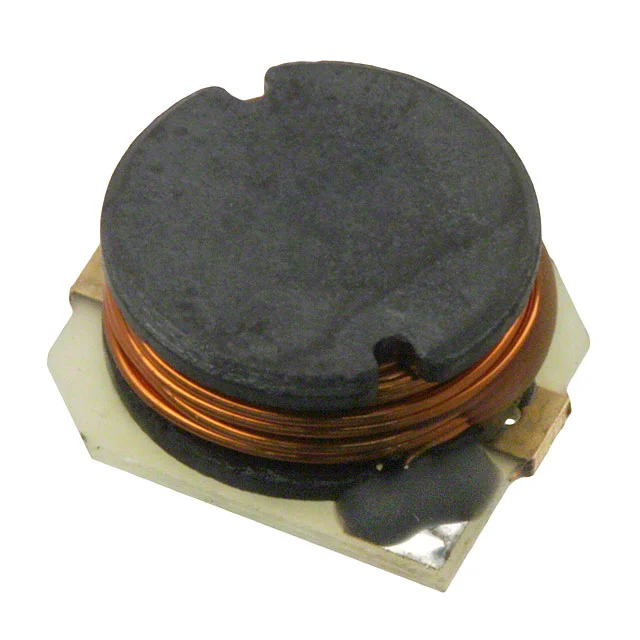

FIXED IND 56UH 2A 200 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR1105-560KL.
SDR1105-560KL has an inductance value of 56 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR1105-560KL is rated for 2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR1105-560KL lists a DC resistance of 200mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR1105-560KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR1105-560KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 56 µH |
| Tolerance | ±10% |
| Current Rating | 2 A |
| DC Resistance (DCR) | 200mOhm Max |
| Saturation Current | 3.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.437" L x 0.394" W (11.10mm x 10.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 56UH 2A 200 MOHM SMD |
| Series | SDR1105 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.197" (5.00mm) |
| Features | - |
