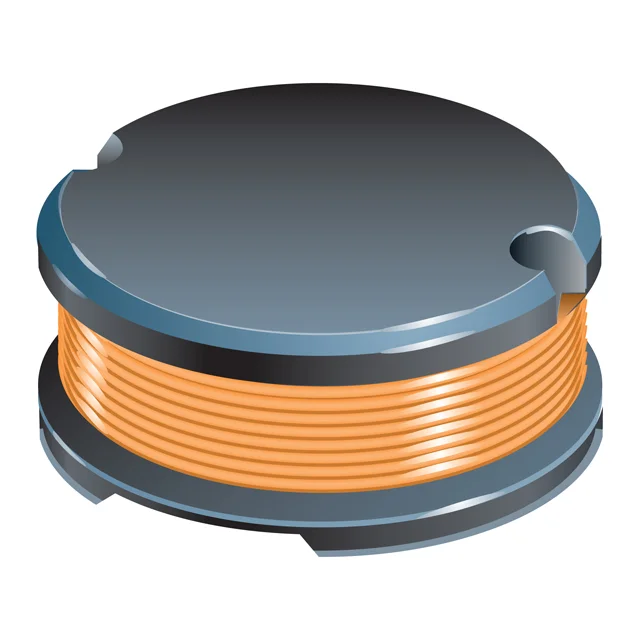

FIXED IND 15UH 4.5A 34 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 4.5 A |
| DC Resistance (DCR) | 34mOhm Max |
| saturationCurrent | 7.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.512" Dia (13.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 4.5A 34 MOHM SMD |
| Series | SDR1307A |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 28 @ 2.52MHz |
| selfResonantFreq | 17MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.287" (7.30mm) |
| features | - |
