Description

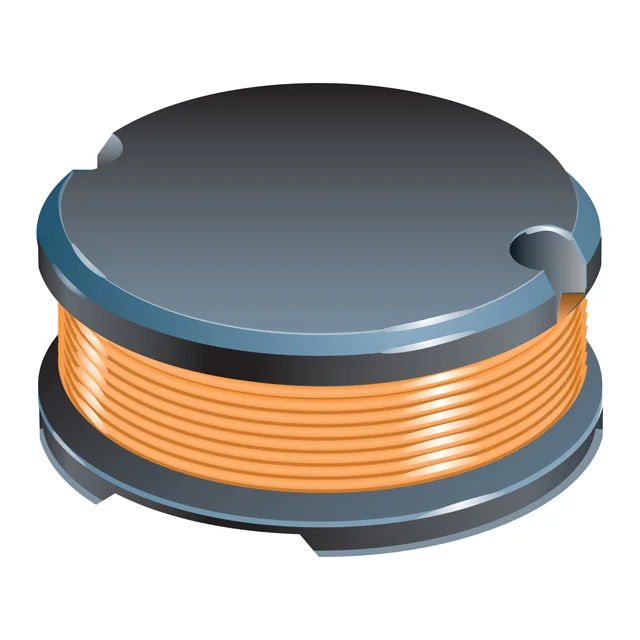

FIXED IND 390UH 1A 600 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR1307A-391K.
SDR1307A-391K has an inductance value of 390 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR1307A-391K is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR1307A-391K lists a DC resistance of 600mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR1307A-391K uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR1307A-391K to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 390 µH |
| Tolerance | ±10% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 600mOhm Max |
| Saturation Current | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.512" Dia (13.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 390UH 1A 600 MOHM SMD |
| Series | SDR1307A |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 12 @ 796kHz |
| Self Resonant Frequency | 2.52MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.287" (7.30mm) |
| Features | - |
