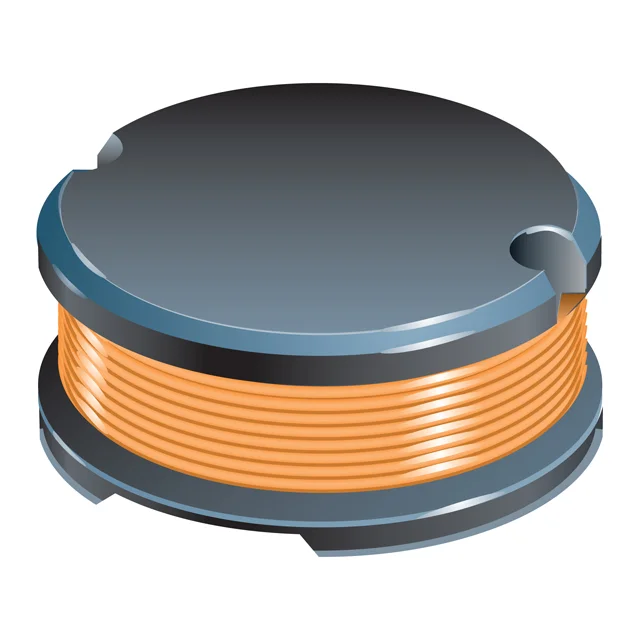

FIXED IND 6.8UH 6A 17 MOHM SMD
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 6 A |
| DC Resistance (DCR) | 17mOhm Max |
| saturationCurrent | 10.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.512" Dia (13.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 6.8UH 6A 17 MOHM SMD |
| Series | SDR1307A |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 24 @ 7.96MHz |
| selfResonantFreq | 26MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.287" (7.30mm) |
| features | - |
