Description

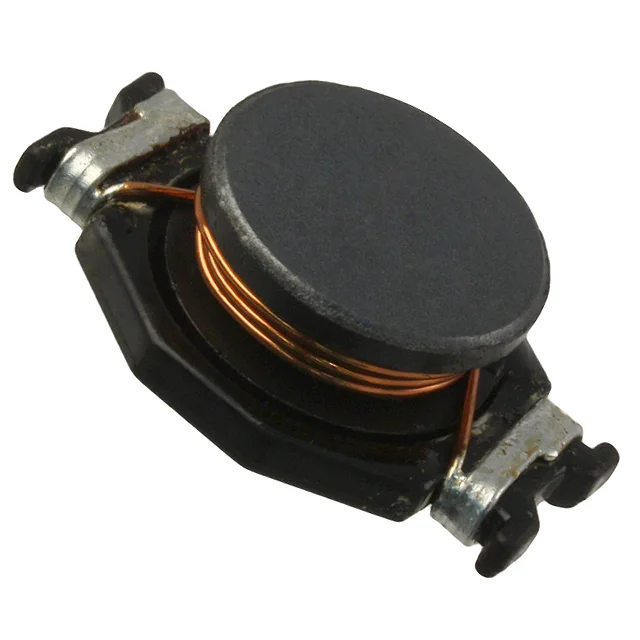

FIXED IND 10UH 6.5A 17.2 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR2207-100M.
SDR2207-100M has an inductance value of 10 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR2207-100M is rated for 6.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR2207-100M lists a DC resistance of 17.2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR2207-100M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR2207-100M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 6.5 A |
| DC Resistance (DCR) | 17.2mOhm Max |
| Saturation Current | 10A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 6.5A 17.2 MOHM |
| Series | SDR2207 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 53 @ 5MHz |
| Self Resonant Frequency | 20MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.307" (7.80mm) |
