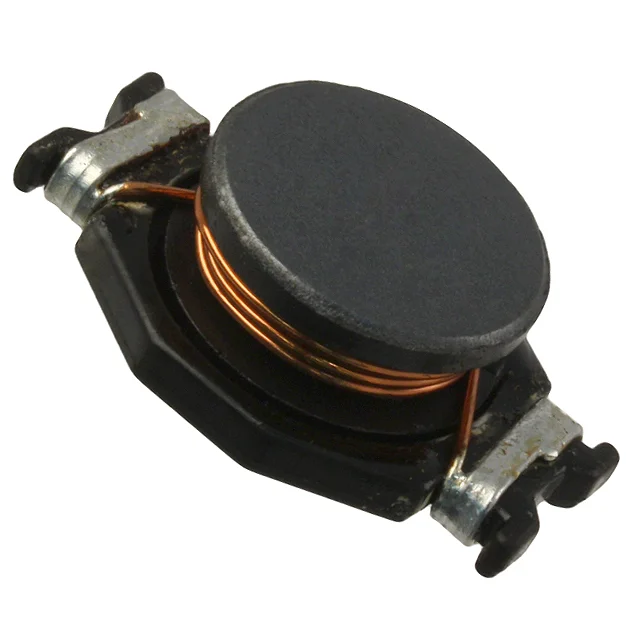

FIXED IND 39UH 3.2A 65 MOHM SMD
| Inductance | 39 µH |
| Tolerance | ±10% |
| Current Rating | 3.2 A |
| DC Resistance (DCR) | 65mOhm Max |
| saturationCurrent | 5.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 39UH 3.2A 65 MOHM SMD |
| Series | SDR2207 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 18 @ 3MHz |
| selfResonantFreq | 10MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.307" (7.80mm) |
| features | - |
