Description

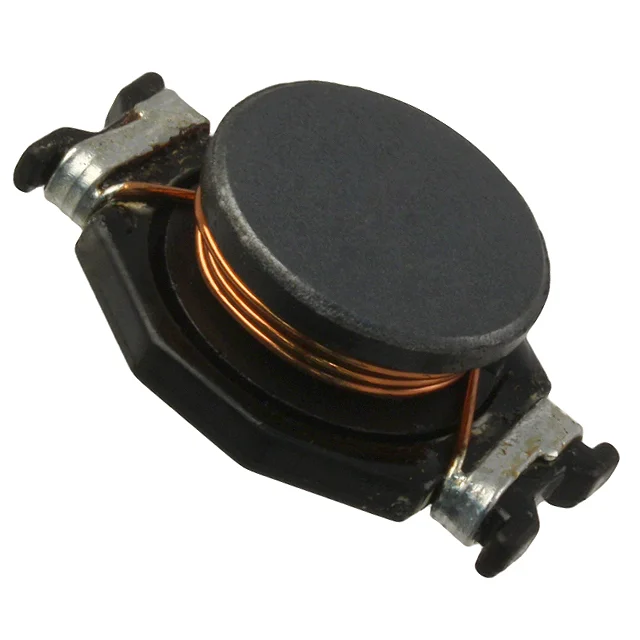

FIXED IND 390UH 900MA 680 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR2207-391KL.
SDR2207-391KL has an inductance value of 390 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR2207-391KL is rated for 900 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR2207-391KL lists a DC resistance of 680mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR2207-391KL uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR2207-391KL to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 390 µH |
| Tolerance | ±10% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 680mOhm Max |
| Saturation Current | 1.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 390UH 900MA 680 MOHM |
| Series | SDR2207 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 17 @ 1MHz |
| Self Resonant Frequency | 4.9MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.307" (7.80mm) |
