Description

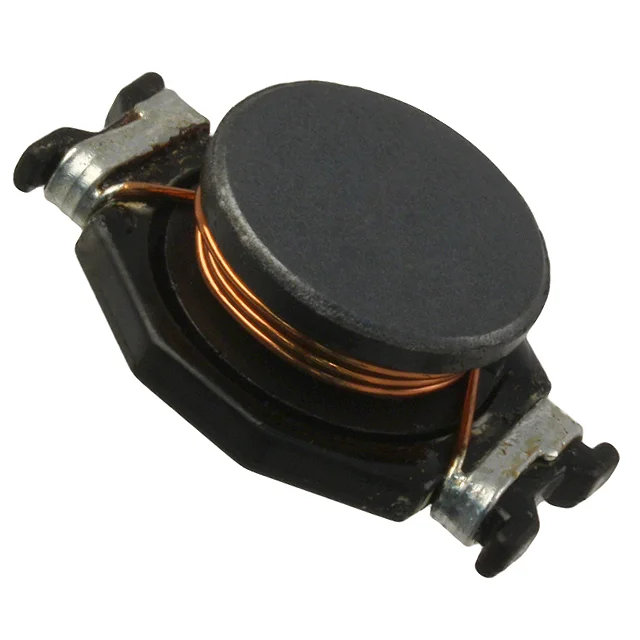

FIXED IND 780NH 15A 2.6 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR2207-R78ML.
SDR2207-R78ML has an inductance value of 780 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR2207-R78ML is rated for 15 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR2207-R78ML lists a DC resistance of 2.6mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR2207-R78ML uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR2207-R78ML to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 780 nH |
| Tolerance | ±20% |
| Current Rating | 15 A |
| DC Resistance (DCR) | 2.6mOhm Max |
| Saturation Current | 30A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 780NH 15A 2.6 MOHM SMD |
| Series | SDR2207 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 30 @ 5MHz |
| Self Resonant Frequency | 104MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.307" (7.80mm) |
