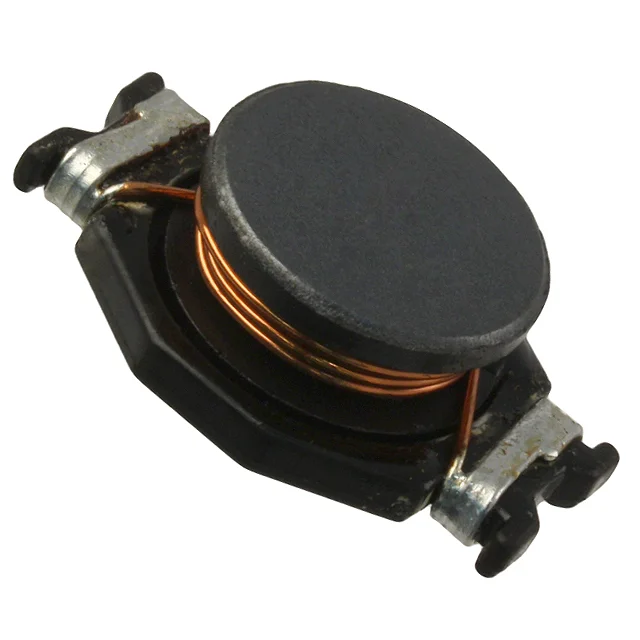

FIXED IND 800NH 16A 2.8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR2207-R80ML.
SDR2207-R80ML has an inductance value of 800 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR2207-R80ML is rated for 16 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR2207-R80ML lists a DC resistance of 2.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR2207-R80ML uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR2207-R80ML to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 800 nH |
| Tolerance | ±20% |
| Current Rating | 16 A |
| DC Resistance (DCR) | 2.8mOhm Max |
| Saturation Current | 35A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.866" L x 0.591" W (22.00mm x 15.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 800NH 16A 2.8 MOHM SMD |
| Series | SDR2207 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 30 @ 5MHz |
| Self Resonant Frequency | 102MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.307" (7.80mm) |
