Description

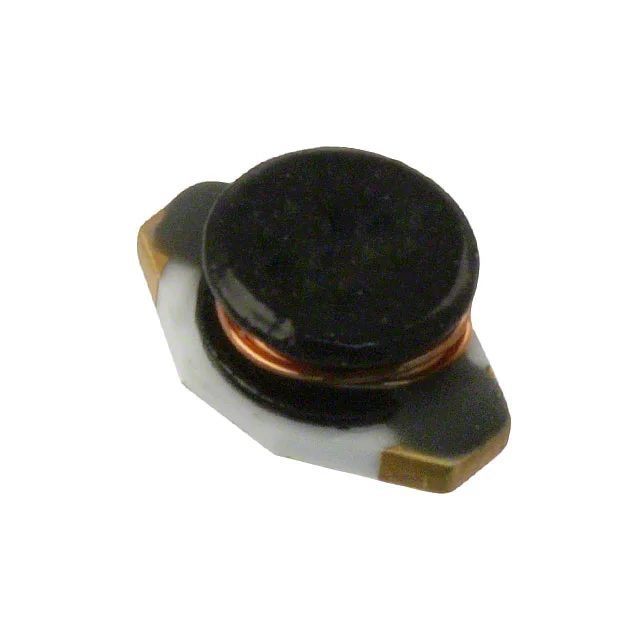

FIXED IND 33UH 600MA 510 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SDR6603-330M.
SDR6603-330M has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SDR6603-330M is rated for 600 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SDR6603-330M lists a DC resistance of 510mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SDR6603-330M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SDR6603-330M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 600 mA |
| DC Resistance (DCR) | 510mOhm Max |
| Saturation Current | 580mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 600MA 510 MOHM |
| Series | SDR6603 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 24 @ 2.52MHz |
| Self Resonant Frequency | 15MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.115" (2.92mm) |
