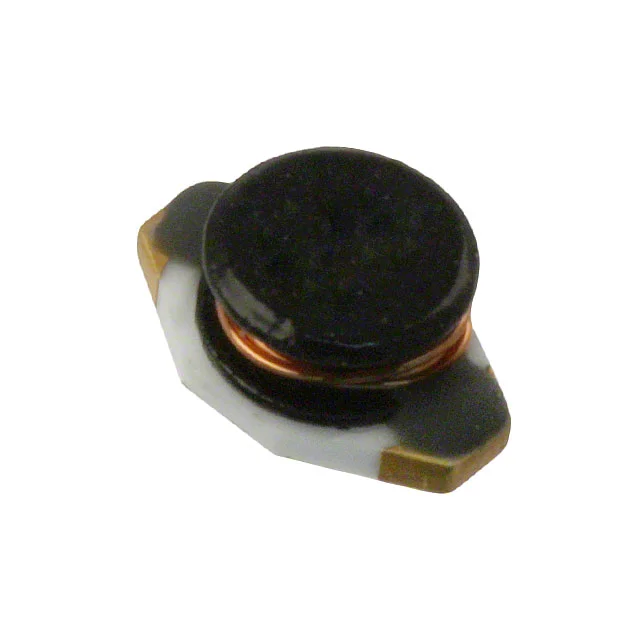

FIXED IND 820UH 100MA 12.6 OHM
| Inductance | 820 µH |
| Tolerance | ±20% |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 12.6Ohm Max |
| saturationCurrent | 120mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.260" L x 0.175" W (6.60mm x 4.45mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 820UH 100MA 12.6 OHM |
| Series | SDR6603 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 40 @ 796kHz |
| selfResonantFreq | 2.5MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.115" (2.92mm) |
| features | - |
