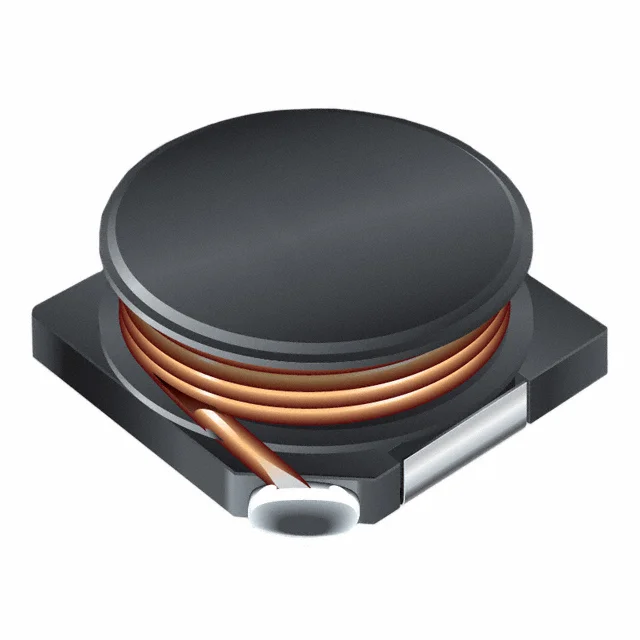

FIXED IND 68UH 580MA 480 MOHM
| Inductance | 68 µH |
| Tolerance | ±10% |
| Current Rating | 580 mA |
| DC Resistance (DCR) | 480mOhm Max |
| saturationCurrent | 640mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68UH 580MA 480 MOHM |
| Series | SDR7030 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 12 @ 2.52MHz |
| selfResonantFreq | 16MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.130" (3.30mm) |
| features | - |
