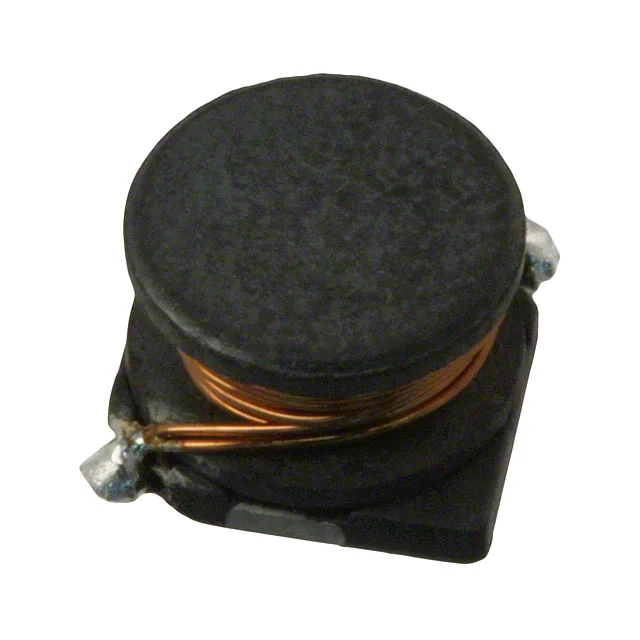

FIXED IND 1.5UH 3.5A 27 MOHM SMD
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 3.5 A |
| DC Resistance (DCR) | 27mOhm Max |
| saturationCurrent | 4.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.5UH 3.5A 27 MOHM SMD |
| Series | SDR7045 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 26 @ 7.96MHz |
| selfResonantFreq | 109MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.189" (4.80mm) |
| features | - |
