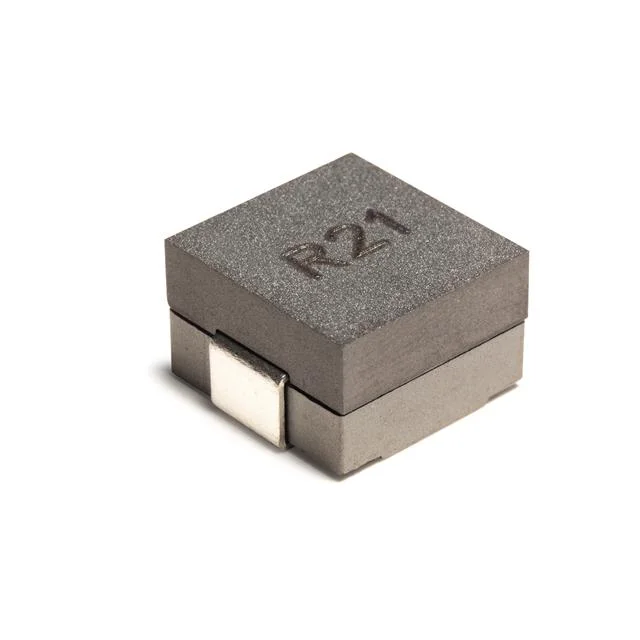

FIXED IND 210NH 50A 0.35 MOHM
| Inductance | 210 nH |
| Tolerance | ±20% |
| Current Rating | 50 A |
| DC Resistance (DCR) | 0.35mOhm Max |
| saturationCurrent | 71A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.531" L x 0.512" W (13.50mm x 13.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 210NH 50A 0.35 MOHM |
| Series | SPB1308 |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.315" (8.00mm) |
| features | - |
