Description

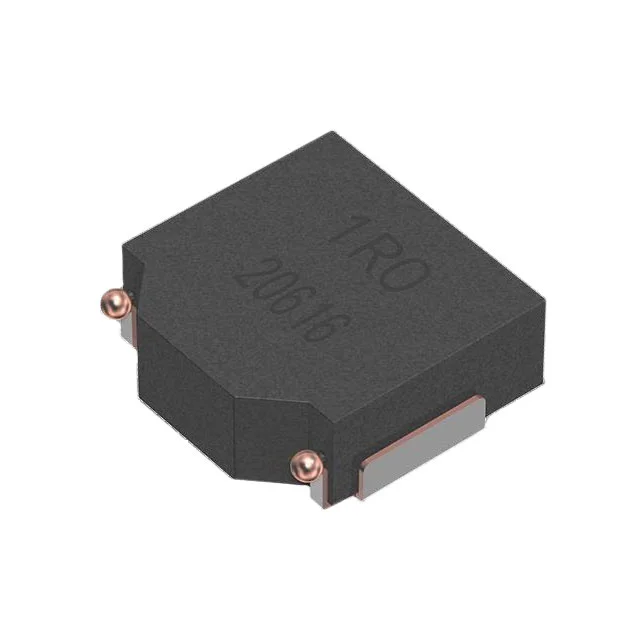

FIXED IND 470NH 8.6A 11.5 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SPM5020T-R47M-LR.
SPM5020T-R47M-LR has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SPM5020T-R47M-LR is rated for 8.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SPM5020T-R47M-LR lists a DC resistance of 11.5mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SPM5020T-R47M-LR uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SPM5020T-R47M-LR to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 8.6 A |
| DC Resistance (DCR) | 11.5mOhm Max |
| Saturation Current | 14A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.213" L x 0.201" W (5.40mm x 5.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 470NH 8.6A 11.5 MOHM |
| Series | SPM-LR |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.079" (2.00mm) |
