Description

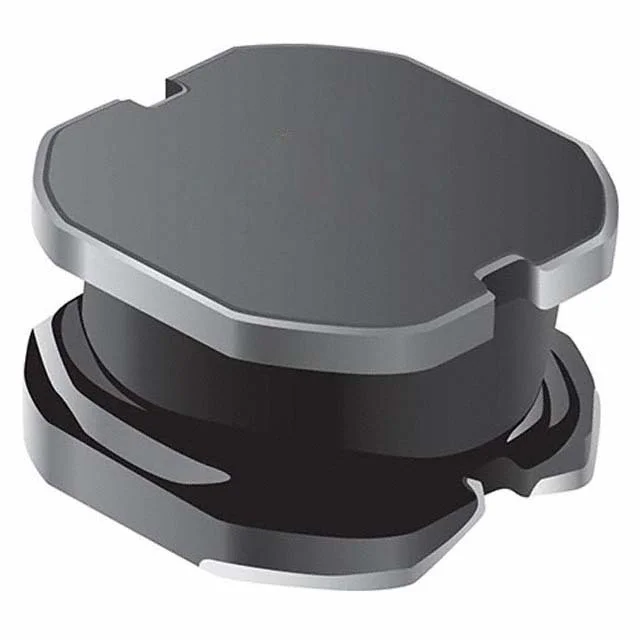

FIXED IND 330UH 900MA 620 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRN1060-331M.
SRN1060-331M has an inductance value of 330 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRN1060-331M is rated for 900 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRN1060-331M lists a DC resistance of 620mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRN1060-331M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRN1060-331M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating | 900 mA |
| DC Resistance (DCR) | 620mOhm Max |
| Saturation Current | 900mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.394" L x 0.386" W (10.00mm x 9.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 330UH 900MA 620 MOHM |
| Series | SRN1060 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Semi-Shielded |
| Q @ Frequency | 13 @ 2.52MHz |
| Self Resonant Frequency | 2.5MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.236" (6.00mm) |
