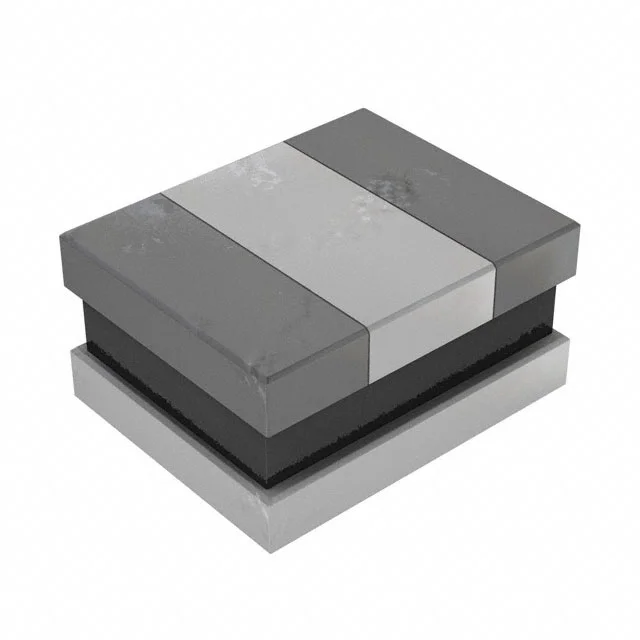

FIXED IND 1UH 2.2A 80 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 2.2 A |
| DC Resistance (DCR) | 80mOhm Max |
| saturationCurrent | 2.7A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 2.2A 80 MOHM SMD |
| Series | SRN2510 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 10 @ 1MHz |
| selfResonantFreq | 140MHz |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.040" (1.02mm) |
| features | - |
