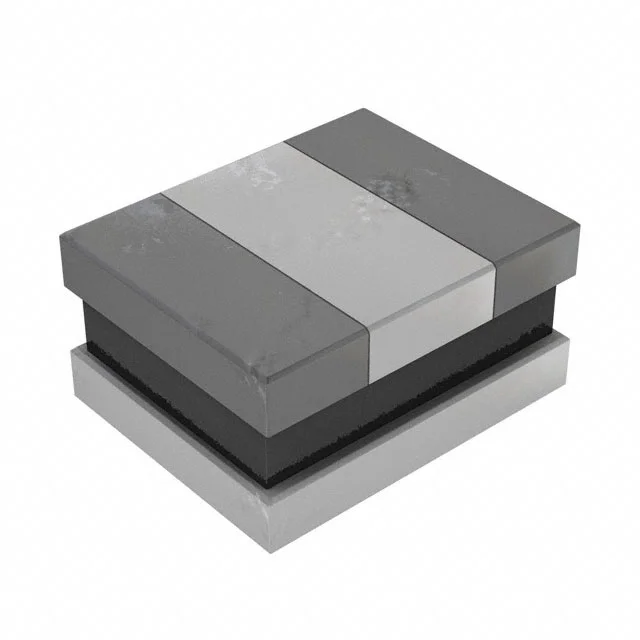

FIXED IND 680NH 2.8A 55 MOHM SMD
| Inductance | 680 nH |
| Tolerance | ±20% |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 55mOhm Max |
| saturationCurrent | 2.9A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 680NH 2.8A 55 MOHM SMD |
| Series | SRN2510 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 9 @ 1MHz |
| selfResonantFreq | 160MHz |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1008 (2520 Metric) |
| heightMax | 0.040" (1.02mm) |
| features | - |
