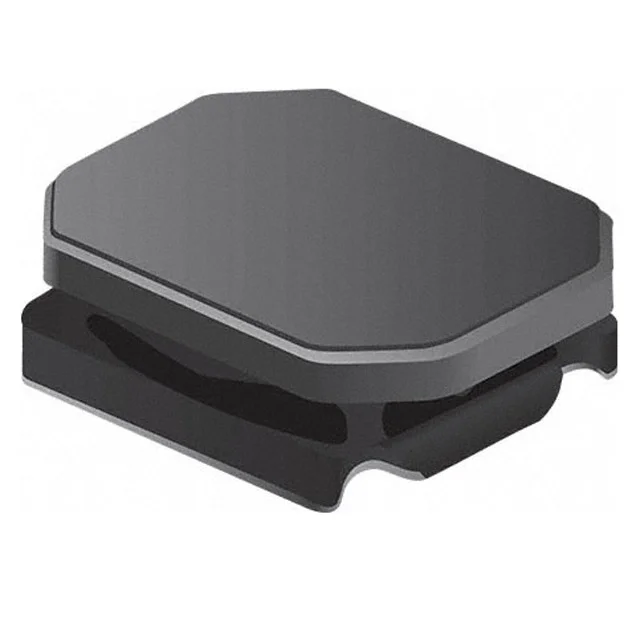

SRN3010-330M
Bourns Inc.
Description
FIXED IND 33UH 500MA 1.32 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRN3010-330M.
SRN3010-330M has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRN3010-330M is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRN3010-330M lists a DC resistance of 1.32Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRN3010-330M uses a package or case of 1212 (3030 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRN3010-330M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 1.32Ohm Max |
| Saturation Current | 320mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Case / Size | 1212 (3030 Metric) |
| Package / Case | 1212 (3030 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 500MA 1.32 OHM |
| Series | SRN3010 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 14 @ 2.52MHz |
| Self Resonant Frequency | 20MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 3010 |
| Height - Seated (Max) | 0.039" (1.00mm) |
