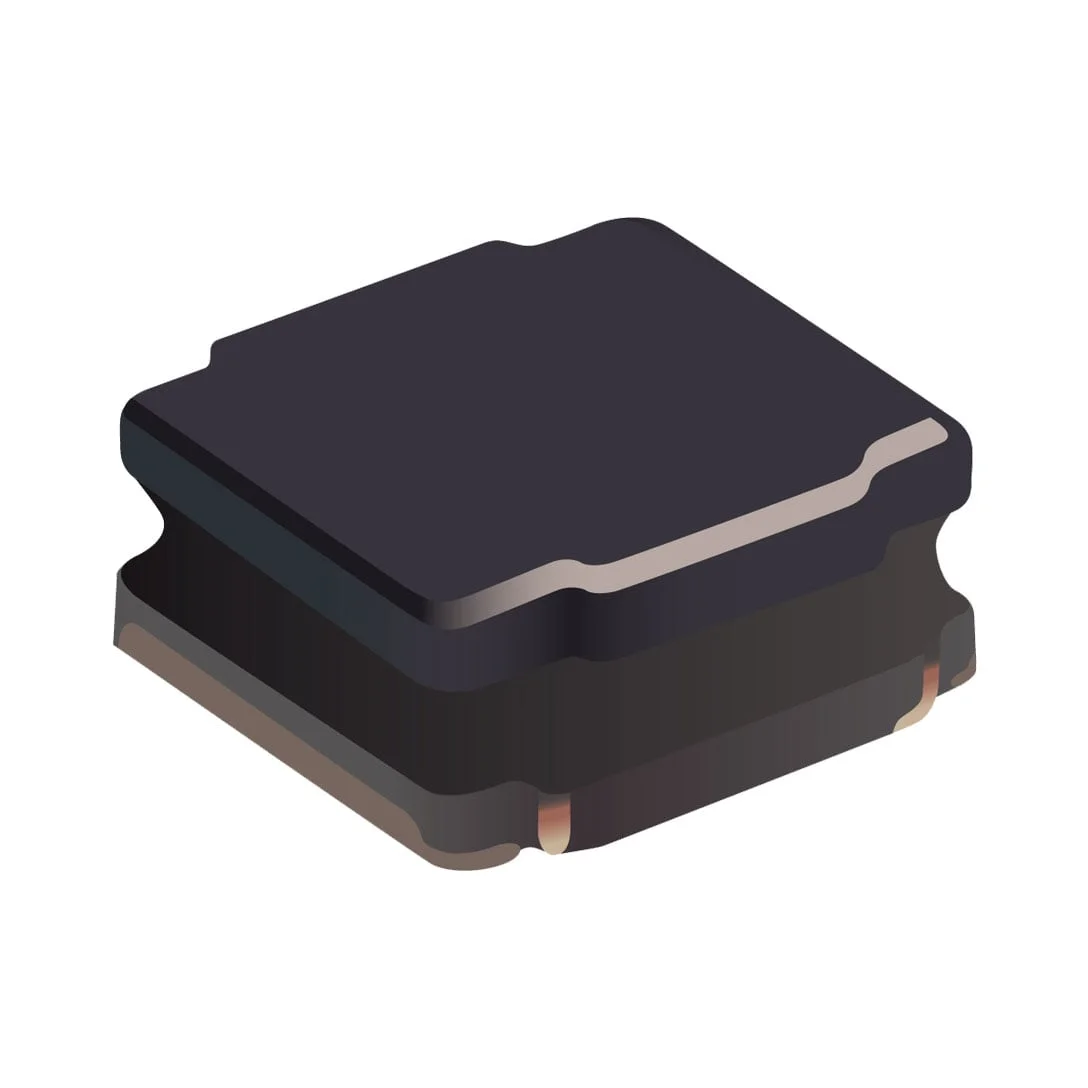

Description
FIXED IND 1UH 3A 36 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRN3015BTA-1R0M.
SRN3015BTA-1R0M has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRN3015BTA-1R0M is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRN3015BTA-1R0M lists a DC resistance of 36mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRN3015BTA-1R0M uses a package or case of 1212 (3030 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRN3015BTA-1R0M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 36mOhm Max |
| Saturation Current | 3A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.118" L x 0.118" W (3.00mm x 3.00mm) |
| Case / Size | 1212 (3030 Metric) |
| Package / Case | 1212 (3030 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 3A 36 MOHM SMD |
| Series | SRN3015BTA |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 10 @ 1MHz |
| Self Resonant Frequency | 155MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 3015 |
| Height - Seated (Max) | 0.059" (1.50mm) |
