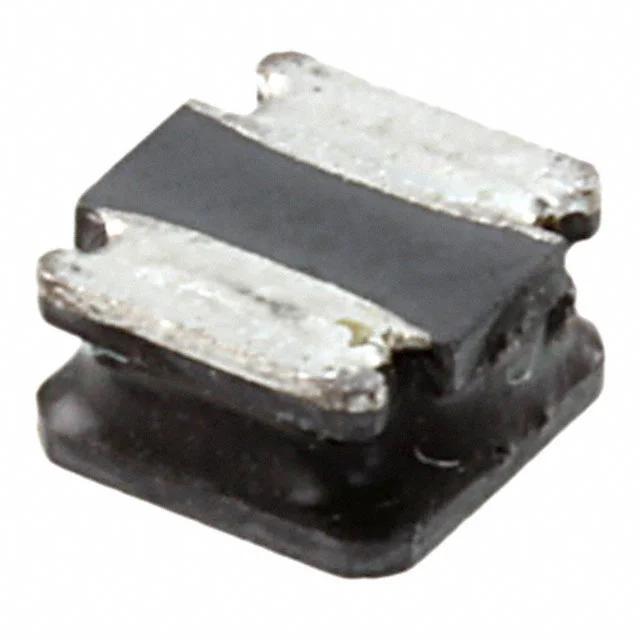

FIXED IND 47UH 400MA 594 MOHM
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 594mOhm Max |
| saturationCurrent | 400mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 400MA 594 MOHM |
| Series | SRN4026 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 19 @ 2.52MHz |
| selfResonantFreq | 10MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.098" (2.50mm) |
| features | - |
