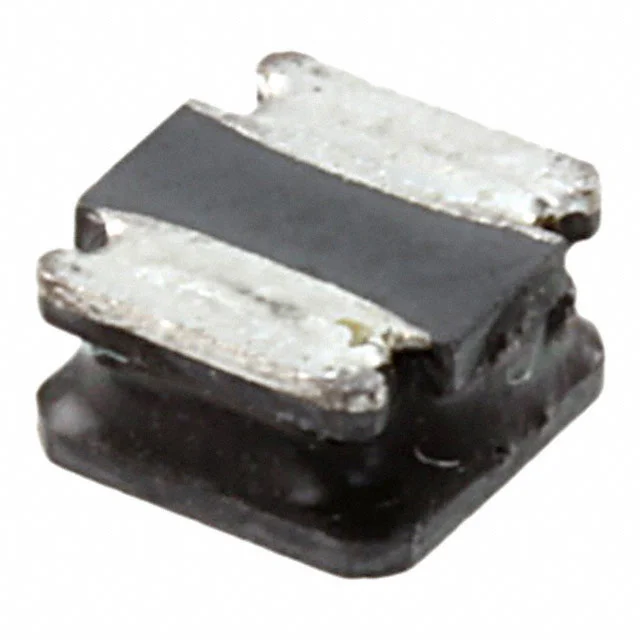

FIXED IND 4.7UH 1.4A 48 MOHM SMD
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 1.4 A |
| DC Resistance (DCR) | 48mOhm Max |
| saturationCurrent | 1.4A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7UH 1.4A 48 MOHM SMD |
| Series | SRN4026 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 9 @ 7.96MHz |
| selfResonantFreq | 40MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.098" (2.50mm) |
| features | - |
