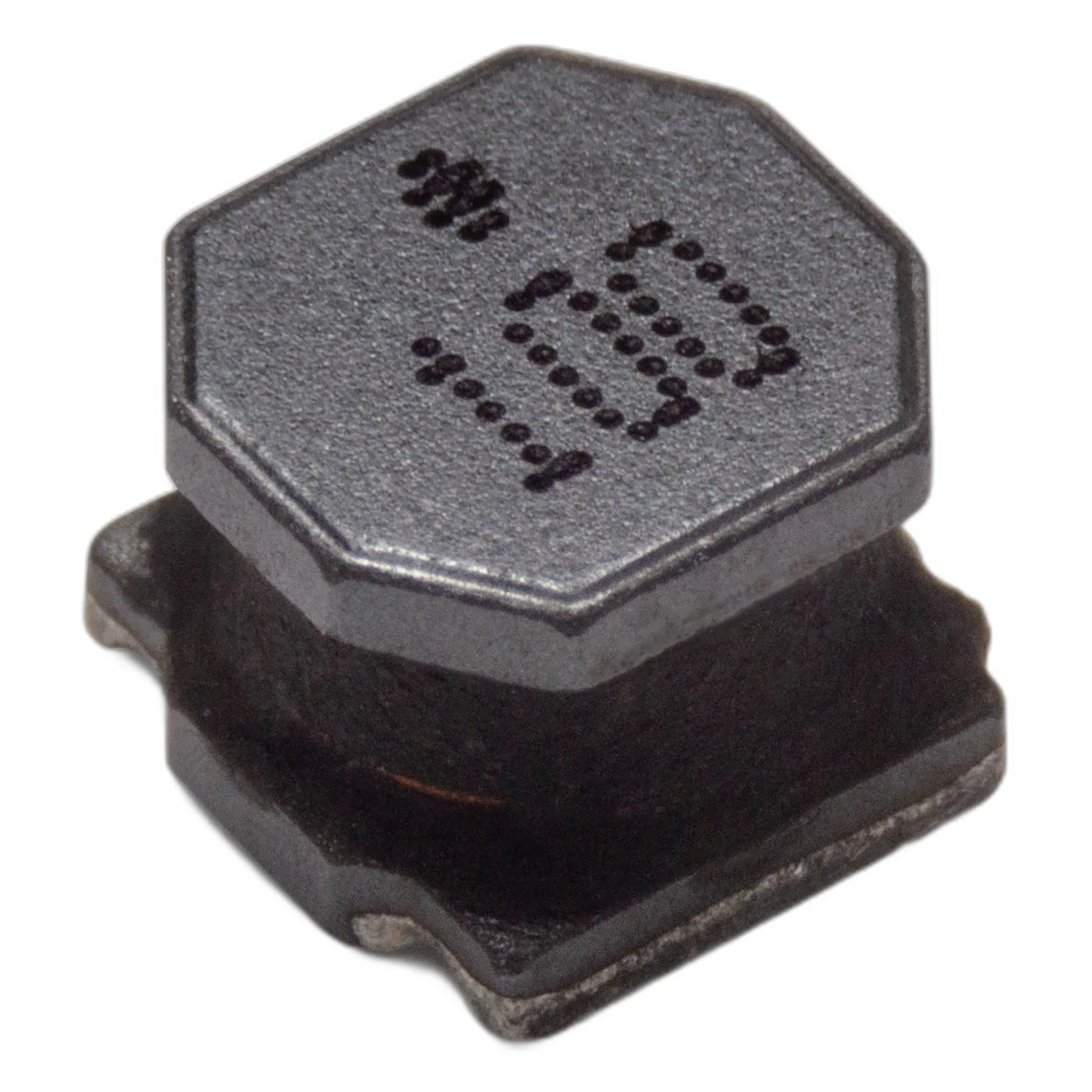

FIXED IND 33UH 1.2A 0.18 MOHM
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 1.2 A |
| DC Resistance (DCR) | 0.18mOhm |
| saturationCurrent | 1.3A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.195" L x 0.195" W (4.95mm x 4.95mm) |
| Case / Size | - |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 1.2A 0.18 MOHM |
| Series | SRN5040TA |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Semi-Shielded |
| qFactor | 15 @ 100kHz |
| selfResonantFreq | 13MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.154" (3.90mm) |
| features | - |
