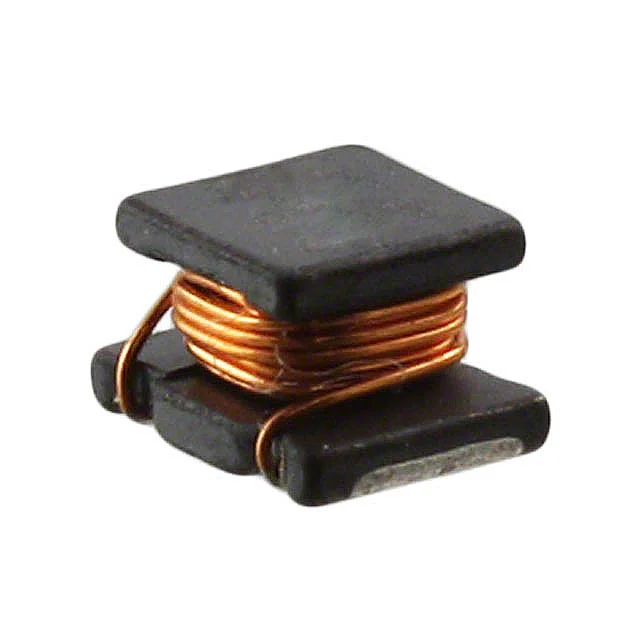

FIXED IND 10UH 1.9A 78 MOHM SMD
| Inductance | 10 µH |
| Tolerance | ±20% |
| Current Rating | 1.9 A |
| DC Resistance (DCR) | 78mOhm Max |
| saturationCurrent | 1.9A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 1.9A 78 MOHM SMD |
| Series | SRN6028 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 18 @ 2.52MHz |
| selfResonantFreq | 20MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 6028 |
| heightMax | 0.110" (2.80mm) |
| features | - |
