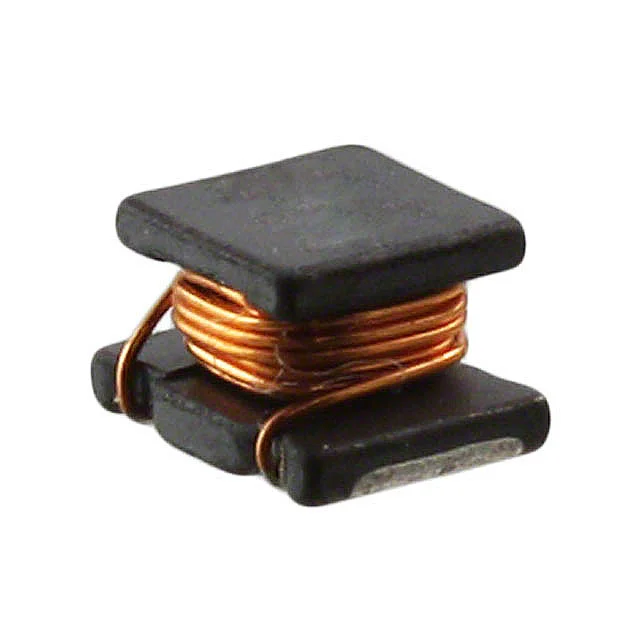

FIXED IND 15UH 1.8A 114 MOHM SMD
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 114mOhm Max |
| saturationCurrent | 1.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 1.8A 114 MOHM SMD |
| Series | SRN6028 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 14 @ 2.52MHz |
| selfResonantFreq | 17MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 6028 |
| heightMax | 0.110" (2.80mm) |
| features | - |
