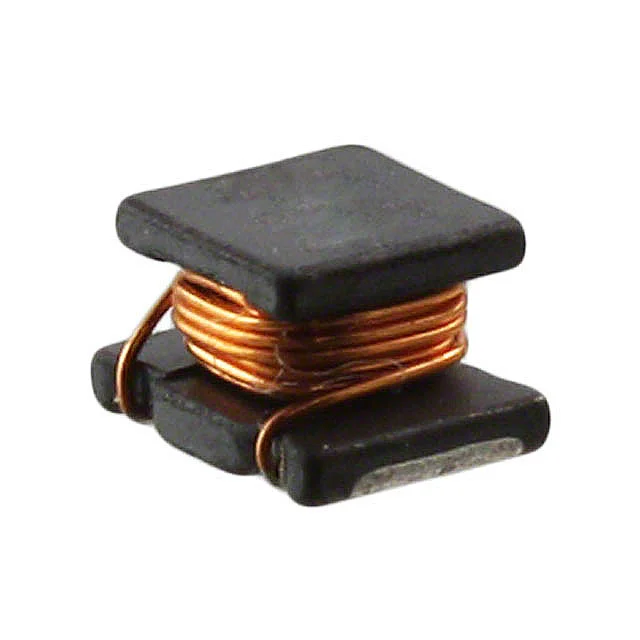

SRN6028-470M
Bourns Inc.
Description
FIXED IND 47UH 920MA 360 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRN6028-470M.
SRN6028-470M has an inductance value of 47 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRN6028-470M is rated for 920 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRN6028-470M lists a DC resistance of 360mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRN6028-470M uses a package or case of 2424 (6060 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRN6028-470M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 920 mA |
| DC Resistance (DCR) | 360mOhm Max |
| Saturation Current | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Package / Case | 2424 (6060 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 920MA 360 MOHM |
| Series | SRN6028 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 11 @ 2.52MHz |
| Self Resonant Frequency | 9MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6028 |
| Height - Seated (Max) | 0.110" (2.80mm) |
