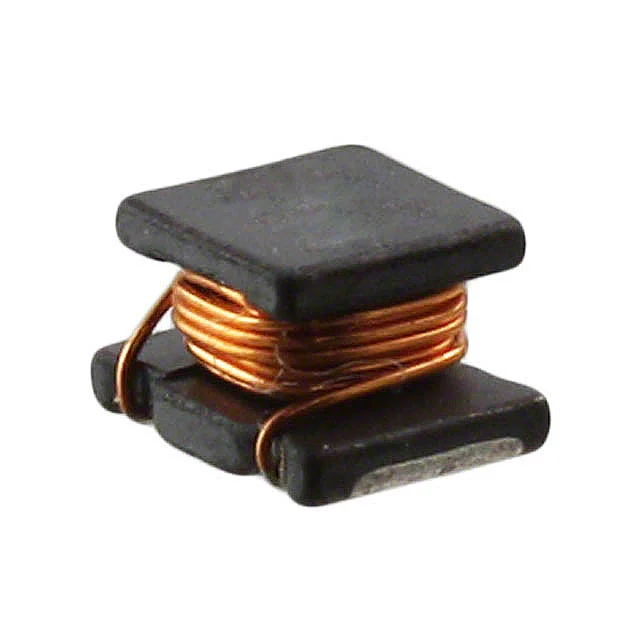

SRN6028-680M
Bourns Inc.
Description
FIXED IND 68UH 770MA 510 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRN6028-680M.
SRN6028-680M has an inductance value of 68 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRN6028-680M is rated for 770 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRN6028-680M lists a DC resistance of 510mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRN6028-680M uses a package or case of 2424 (6060 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRN6028-680M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 770 mA |
| DC Resistance (DCR) | 510mOhm Max |
| Saturation Current | 800mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Package / Case | 2424 (6060 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 68UH 770MA 510 MOHM |
| Series | SRN6028 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 11 @ 2.52MHz |
| Self Resonant Frequency | 7MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6028 |
| Height - Seated (Max) | 0.110" (2.80mm) |
