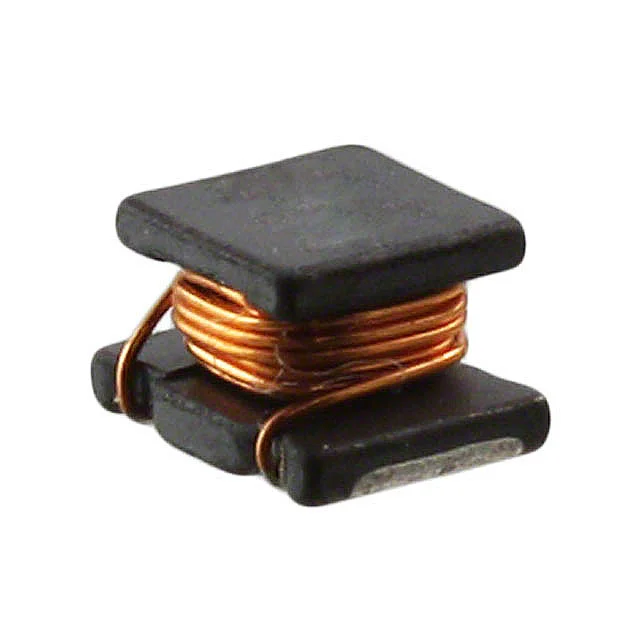

SRN6028-6R0M
Bourns Inc.
Description
FIXED IND 6UH 2.5A 48 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRN6028-6R0M.
SRN6028-6R0M has an inductance value of 6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRN6028-6R0M is rated for 2.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRN6028-6R0M lists a DC resistance of 48mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRN6028-6R0M uses a package or case of 2424 (6060 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRN6028-6R0M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 6 µH |
| Tolerance | ±20% |
| Current Rating | 2.5 A |
| DC Resistance (DCR) | 48mOhm Max |
| Saturation Current | 2.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Package / Case | 2424 (6060 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 6UH 2.5A 48 MOHM SMD |
| Series | SRN6028 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 10 @ 7.96MHz |
| Self Resonant Frequency | 28MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6028 |
| Height - Seated (Max) | 0.110" (2.80mm) |
