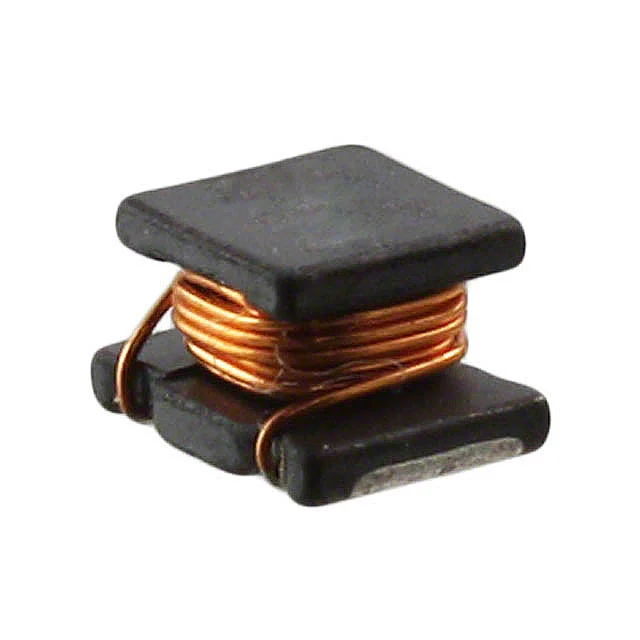

SRN6028-R90Y
Bourns Inc.
Description
FIXED IND 900NH 4.6A 17 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRN6028-R90Y.
SRN6028-R90Y has an inductance value of 900 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRN6028-R90Y is rated for 4.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRN6028-R90Y lists a DC resistance of 17mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRN6028-R90Y uses a package or case of 2424 (6060 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRN6028-R90Y to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 900 nH |
| Tolerance | ±30% |
| Current Rating | 4.6 A |
| DC Resistance (DCR) | 17mOhm Max |
| Saturation Current | 6.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | 2424 (6060 Metric) |
| Package / Case | 2424 (6060 Metric) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 900NH 4.6A 17 MOHM SMD |
| Series | SRN6028 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 12 @ 7.96MHz |
| Self Resonant Frequency | 105MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6028 |
| Height - Seated (Max) | 0.110" (2.80mm) |
