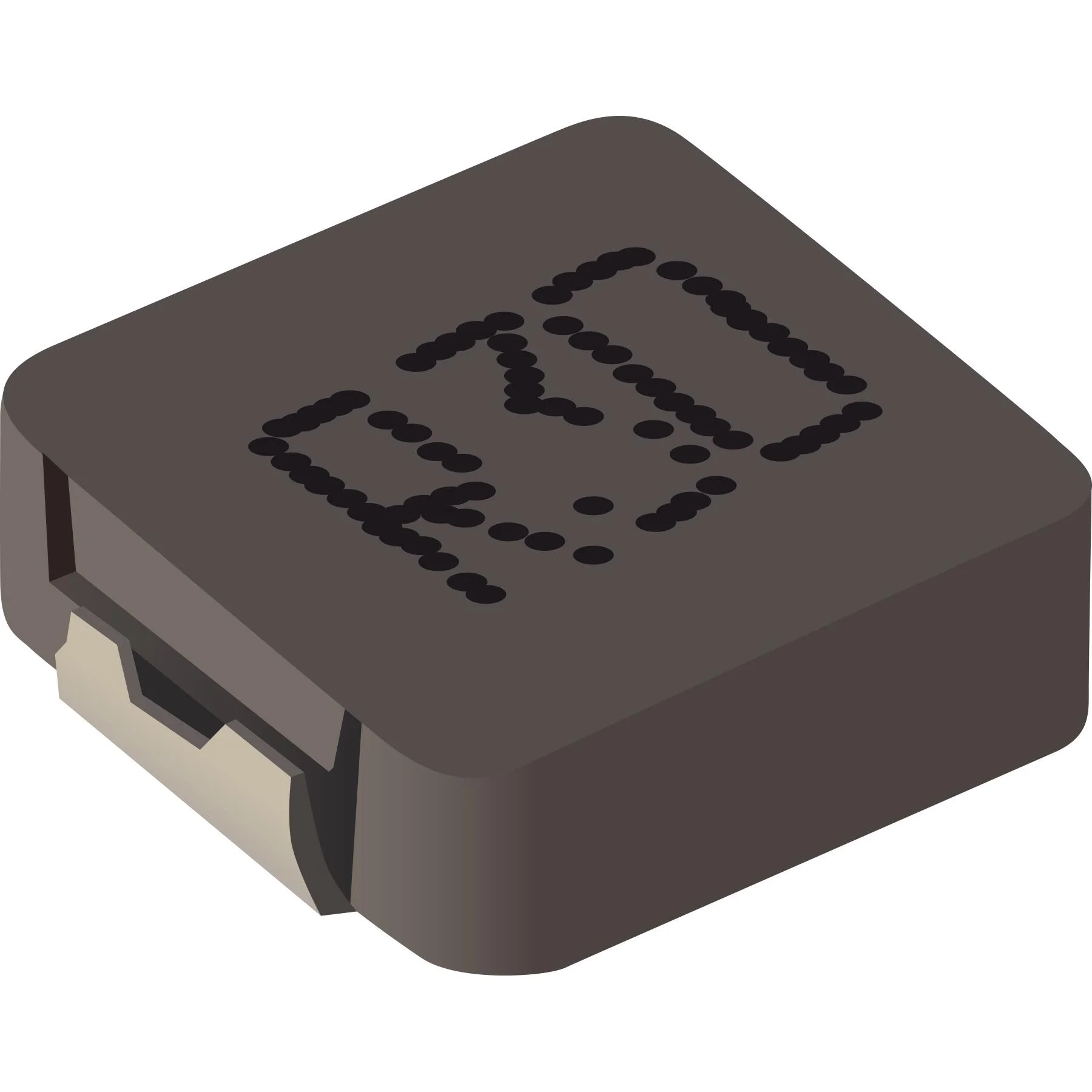

FIXED IND 2.2UH 2.8A 106.8 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 2.8 A |
| DC Resistance (DCR) | 106.8mOhm Max |
| saturationCurrent | 3.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.130" L x 0.122" W (3.30mm x 3.10mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH 2.8A 106.8 MOHM |
| Series | SRP0310F |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal |
| shielding | Shielded |
| qFactor | 5 @ 100MHz |
| selfResonantFreq | 41MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.039" (1.00mm) |
| features | - |
