Description

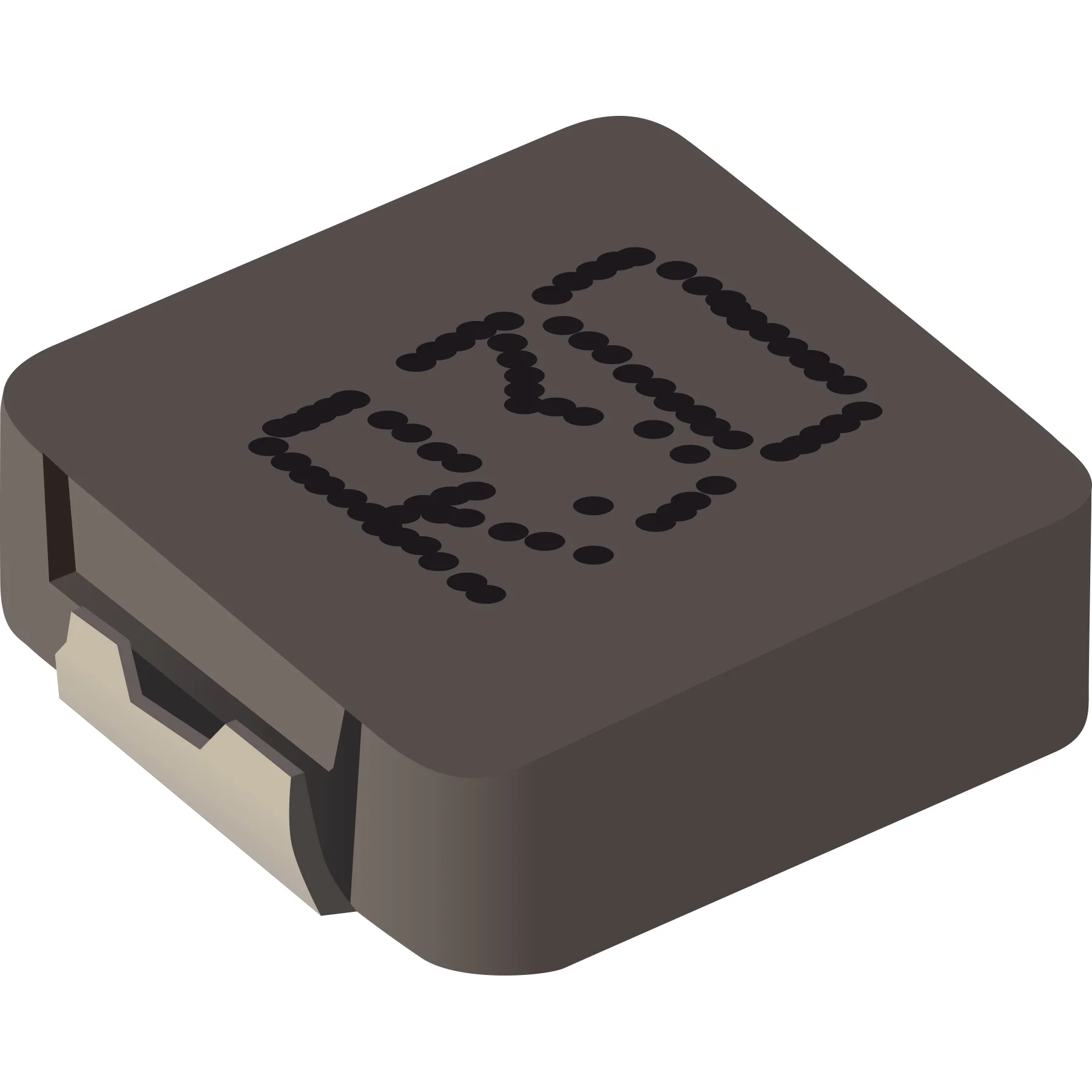

FIXED IND 300NH 8.6A 12.7 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRP0312F-R30M.
SRP0312F-R30M has an inductance value of 300 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRP0312F-R30M is rated for 8.6 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRP0312F-R30M lists a DC resistance of 12.7mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRP0312F-R30M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRP0312F-R30M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 300 nH |
| Tolerance | ±20% |
| Current Rating | 8.6 A |
| DC Resistance (DCR) | 12.7mOhm Max |
| Saturation Current | 9.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.130" L x 0.122" W (3.30mm x 3.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 300NH 8.6A 12.7 MOHM |
| Series | SRP0312F |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Metal |
| Shielding | Shielded |
| Q @ Frequency | 5 @ 100kHz |
| Self Resonant Frequency | 140MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.047" (1.20mm) |
