Description

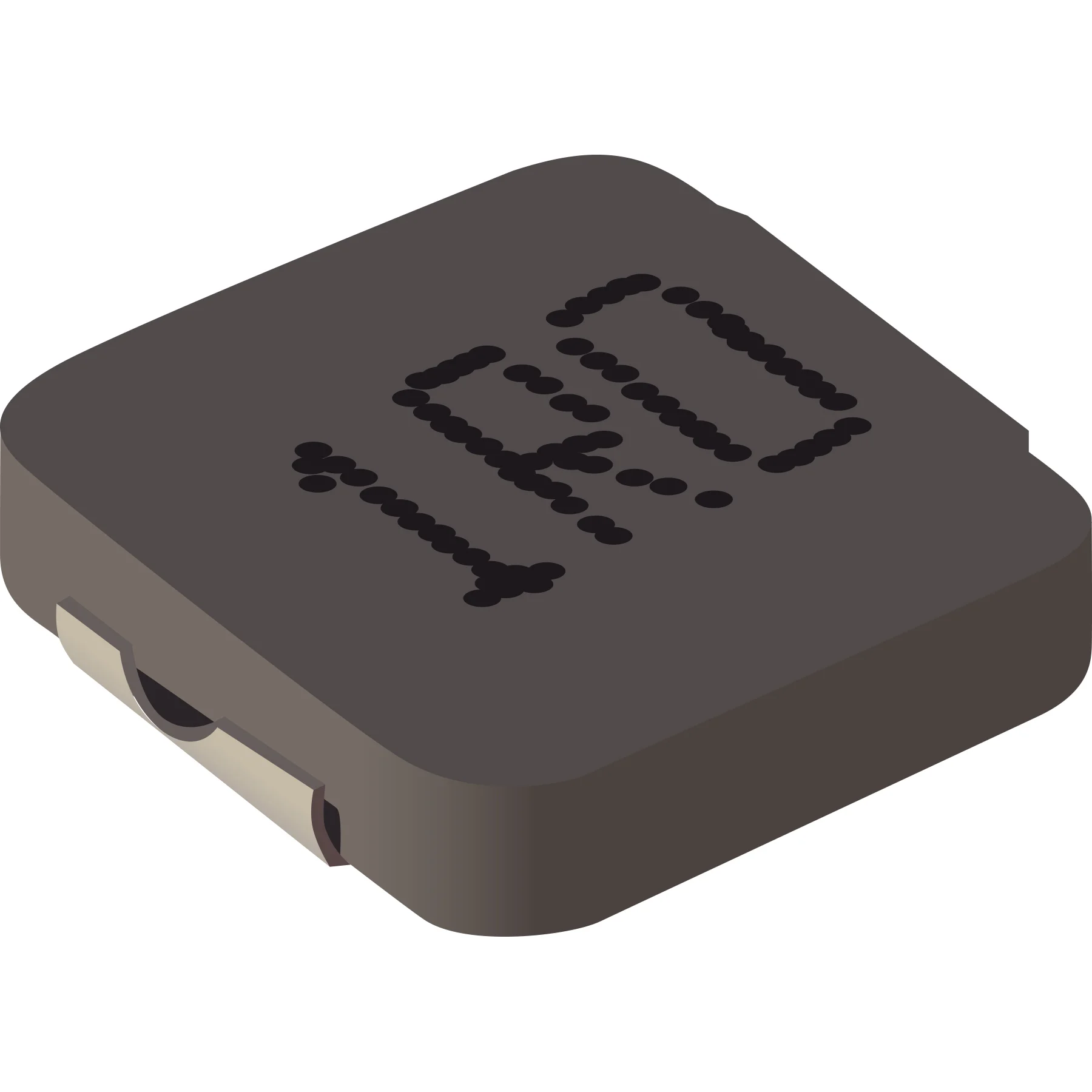

FIXED IND 1UH 5.4A 39.6 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRP0410F-1R0M.
SRP0410F-1R0M has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRP0410F-1R0M is rated for 5.4 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRP0410F-1R0M lists a DC resistance of 39.6mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRP0410F-1R0M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRP0410F-1R0M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 5.4 A |
| DC Resistance (DCR) | 39.6mOhm Max |
| Saturation Current | 5.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 5.4A 39.6 MOHM SMD |
| Series | SRP0410F |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Metal |
| Shielding | Shielded |
| Q @ Frequency | 5 @ 100MHz |
| Self Resonant Frequency | 62MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
