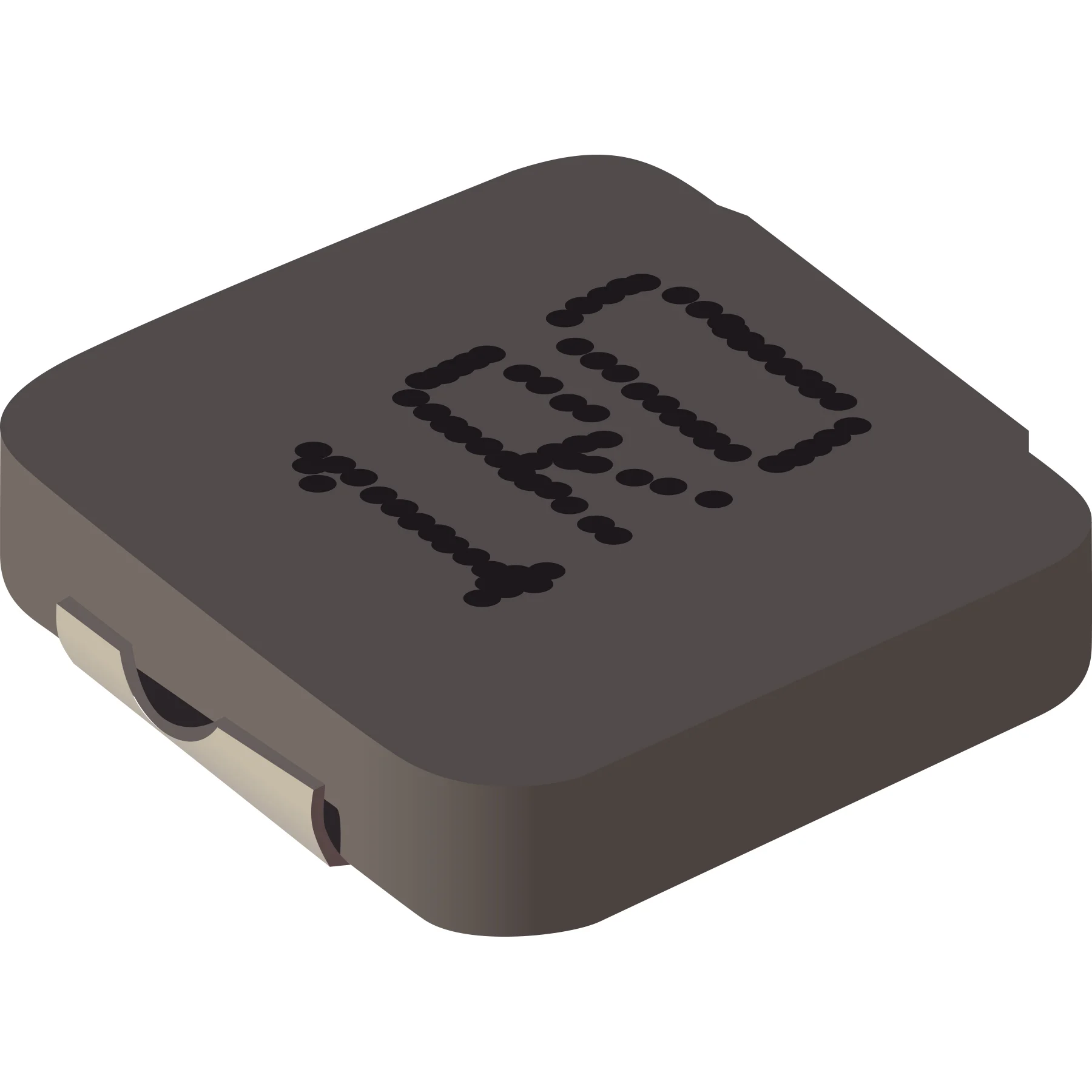

FIXED IND 1.5UH 4.9A 54 MOHM SMD
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 4.9 A |
| DC Resistance (DCR) | 54mOhm Max |
| saturationCurrent | 4.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.5UH 4.9A 54 MOHM SMD |
| Series | SRP0410F |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal |
| shielding | Shielded |
| qFactor | 5 @ 100MHz |
| selfResonantFreq | 55MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.039" (1.00mm) |
| features | - |
