Description

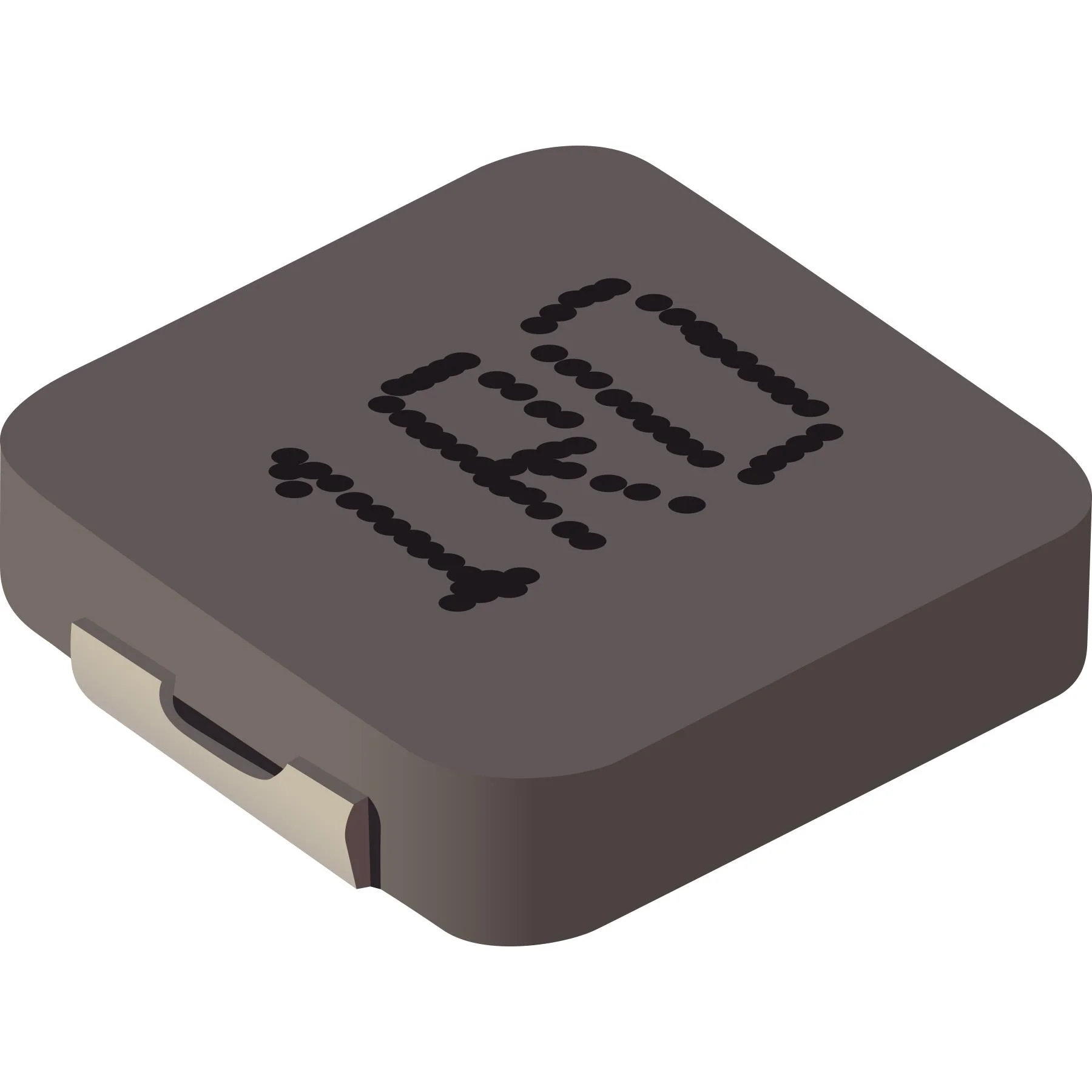

FIXED IND 8.2UH 2.2A 234 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRP0412F-8R2M.
SRP0412F-8R2M has an inductance value of 8.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRP0412F-8R2M is rated for 2.2 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRP0412F-8R2M lists a DC resistance of 234mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRP0412F-8R2M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRP0412F-8R2M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating | 2.2 A |
| DC Resistance (DCR) | 234mOhm Max |
| Saturation Current | 2.6A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 8.2UH 2.2A 234 MOHM |
| Series | SRP0412F |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Metal |
| Shielding | Shielded |
| Q @ Frequency | 10 @ 100MHz |
| Self Resonant Frequency | 17MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.047" (1.20mm) |
