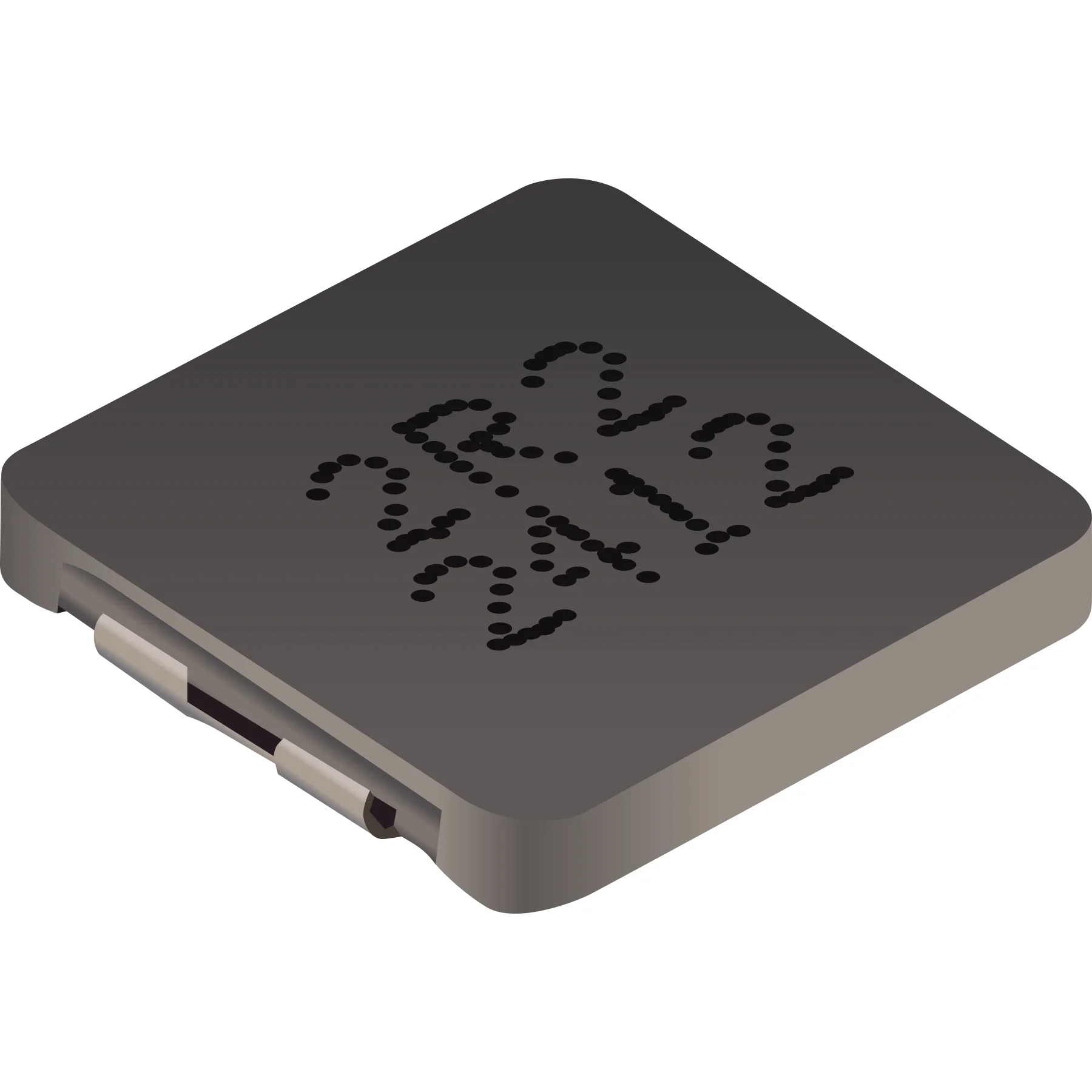

FIXED IND 470NH 8.2A 20.4 MOHM
| Inductance | 470 nH |
| Tolerance | ±20% |
| Current Rating | 8.2 A |
| DC Resistance (DCR) | 20.4mOhm Max |
| saturationCurrent | 10.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.240" L x 0.240" W (6.10mm x 6.10mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 470NH 8.2A 20.4 MOHM |
| Series | SRP0610F |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal |
| shielding | Shielded |
| qFactor | 10 @ 100MHz |
| selfResonantFreq | 98MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.039" (1.00mm) |
| features | - |
