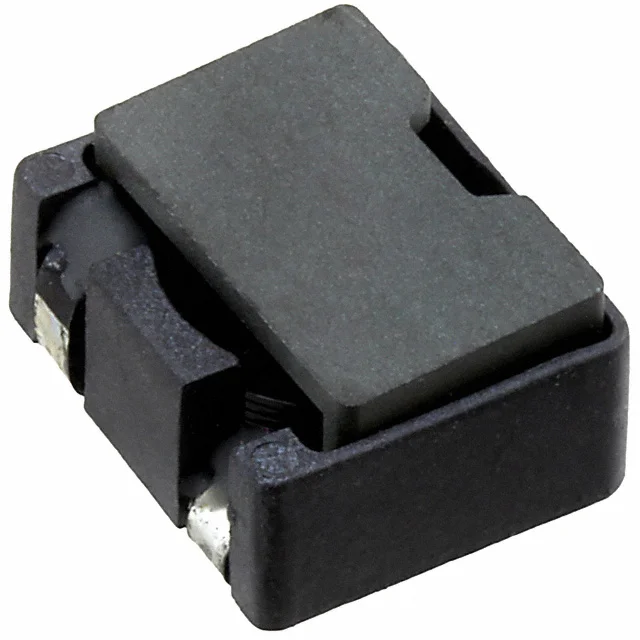

FIXED IND 4.3UH 10A 8.5 MOHM SMD
| Inductance | 4.3 µH |
| Tolerance | ±20% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 8.5mOhm Max |
| saturationCurrent | 8A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.433" L x 0.368" W (11.00mm x 9.35mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.3UH 10A 8.5 MOHM SMD |
| Series | SRP1055 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.228" (5.80mm) |
| features | - |
