Description

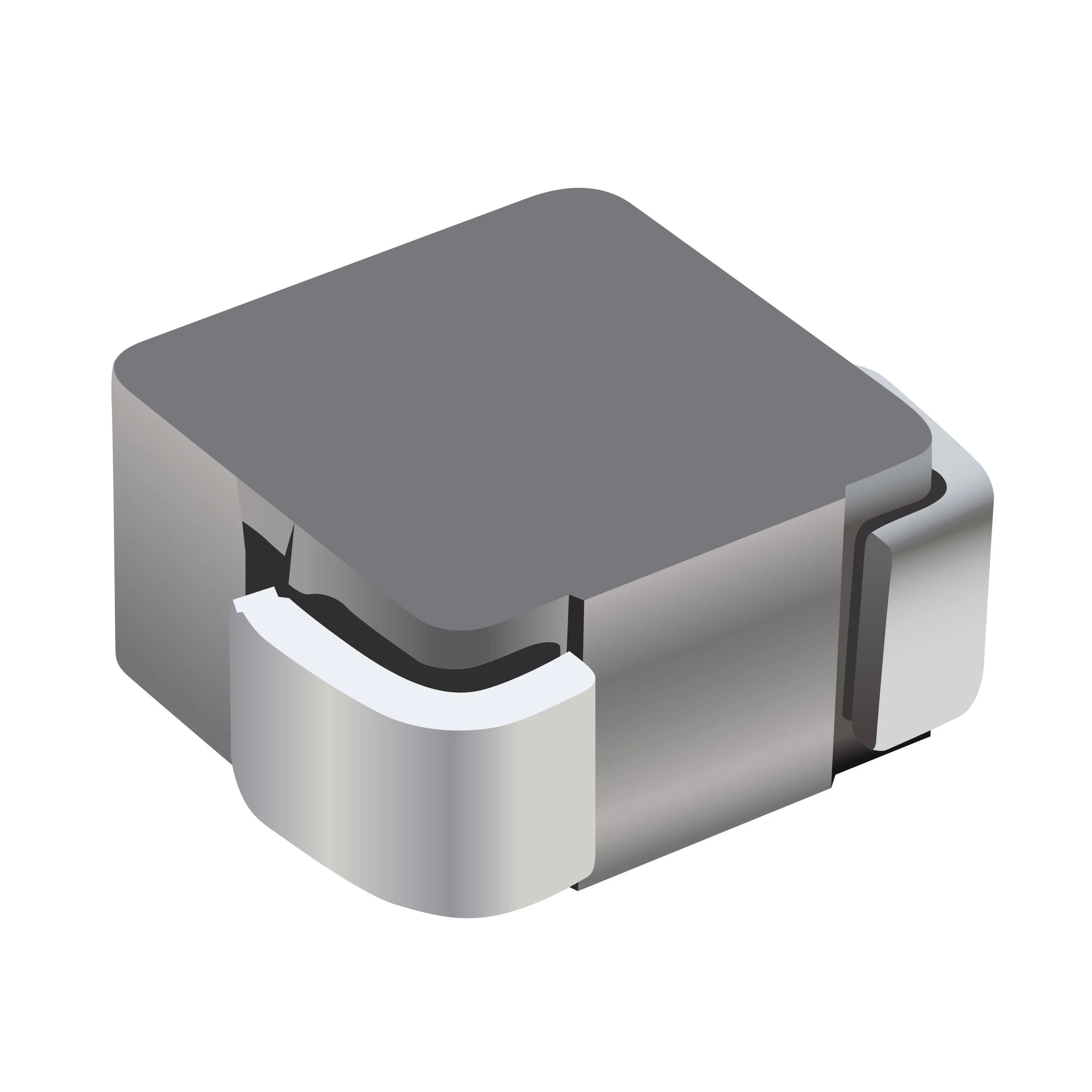

FIXED IND 90NH 90A 210 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRP1060VR-90NM.
SRP1060VR-90NM has an inductance value of 90 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRP1060VR-90NM is rated for 90 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRP1060VR-90NM lists a DC resistance of 210mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRP1060VR-90NM uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRP1060VR-90NM to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 90 nH |
| Tolerance | ±20% |
| Current Rating | 90 A |
| DC Resistance (DCR) | 210mOhm |
| Saturation Current | 95A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.500" L x 0.228" W (12.70mm x 5.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 90NH 90A 210 MOHM SMD |
| Series | SRP1060VR |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.453" (11.50mm) |
