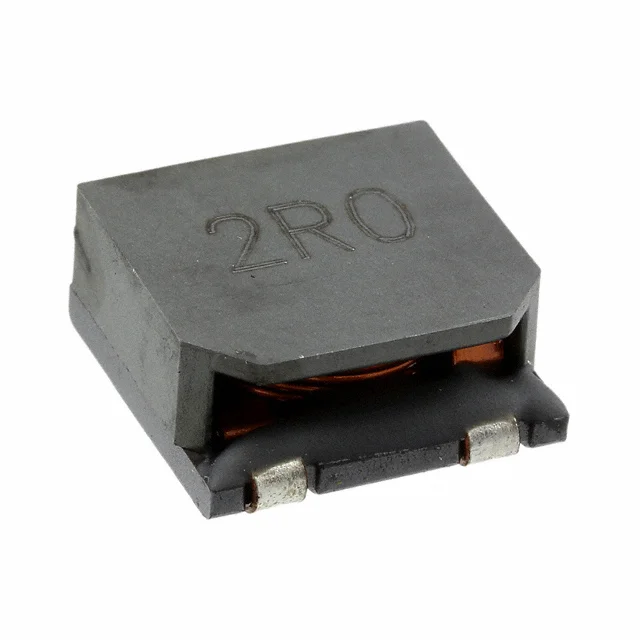

FIXED IND 2UH 17A 6 MOHM SMD
| Inductance | 2 µH |
| Tolerance | ±25% |
| Current Rating | 17 A |
| DC Resistance (DCR) | 6mOhm Max |
| saturationCurrent | 15A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2UH 17A 6 MOHM SMD |
| Series | SRP1206 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.236" (6.00mm) |
| features | - |
