Description

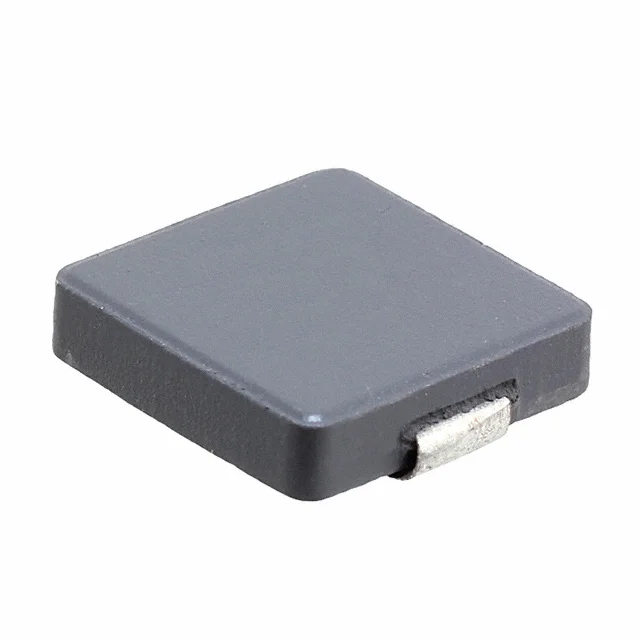

FIXED IND 1UH 24A 3.5 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRP1238A-1R0M.
SRP1238A-1R0M has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRP1238A-1R0M is rated for 24 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRP1238A-1R0M lists a DC resistance of 3.5mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRP1238A-1R0M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRP1238A-1R0M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 24 A |
| DC Resistance (DCR) | 3.5mOhm Max |
| Saturation Current | 40A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 24A 3.5 MOHM SMD |
| Series | SRP1238A |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Carbonyl Powder |
| Shielding | Shielded |
| Q @ Frequency | 15 @ 100kHz |
| Self Resonant Frequency | 40MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Features | - |
