Description

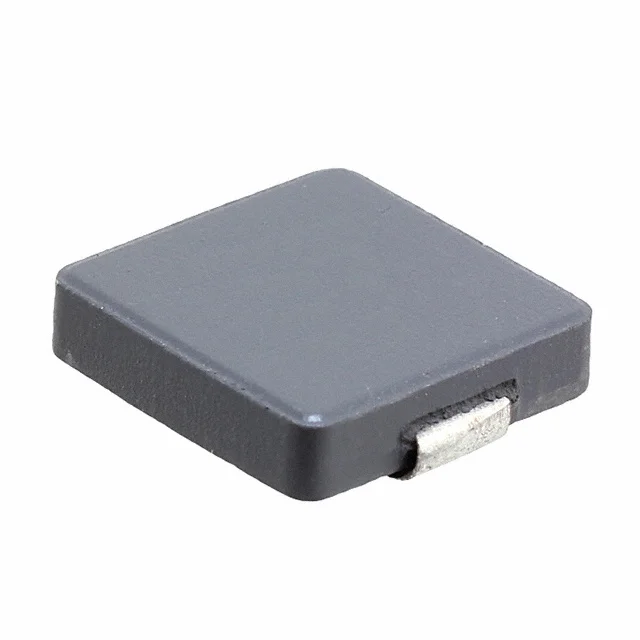

FIXED IND 1.5UH 19A 5.5 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRP1238A-1R5M.
SRP1238A-1R5M has an inductance value of 1.5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRP1238A-1R5M is rated for 19 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRP1238A-1R5M lists a DC resistance of 5.5mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRP1238A-1R5M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRP1238A-1R5M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 19 A |
| DC Resistance (DCR) | 5.5mOhm Max |
| Saturation Current | 35A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.5UH 19A 5.5 MOHM SMD |
| Series | SRP1238A |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Carbonyl Powder |
| Shielding | Shielded |
| Q @ Frequency | 20 @ 100kHz |
| Self Resonant Frequency | 30MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.138" (3.50mm) |
| Features | - |
