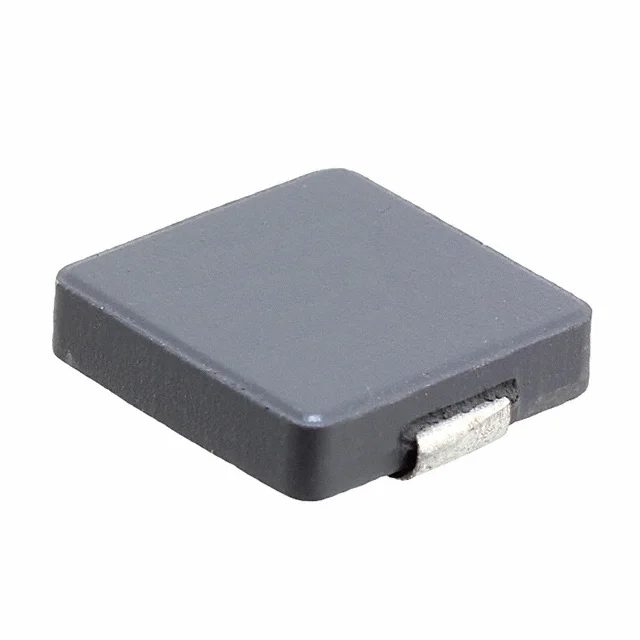

FIXED IND 1.8UH 17A 7 MOHM SMD
| Inductance | 1.8 µH |
| Tolerance | ±20% |
| Current Rating | 17 A |
| DC Resistance (DCR) | 7mOhm Max |
| saturationCurrent | 30A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1.8UH 17A 7 MOHM SMD |
| Series | SRP1238A |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Carbonyl Powder |
| shielding | Shielded |
| qFactor | 20 @ 100kHz |
| selfResonantFreq | 27MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.138" (3.50mm) |
| features | - |
