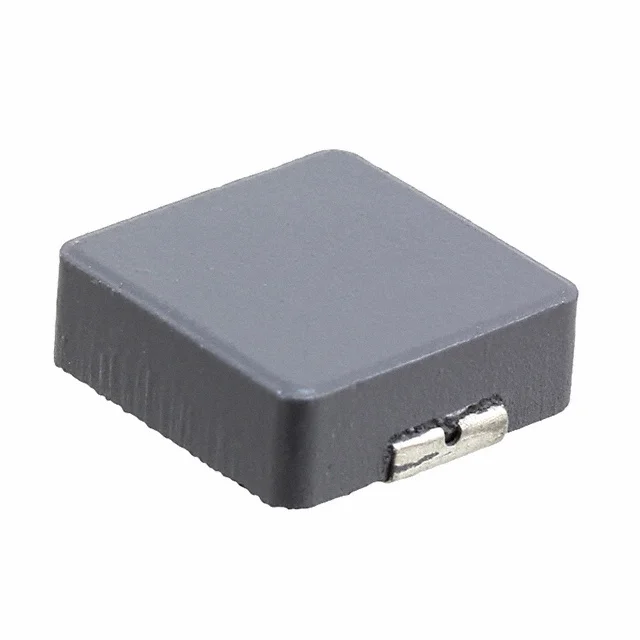

FIXED IND 360NH 42A 0.95 MOHM
| Inductance | 360 nH |
| Tolerance | ±20% |
| Current Rating | 42 A |
| DC Resistance (DCR) | 0.95mOhm Max |
| saturationCurrent | 75A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.531" L x 0.492" W (13.50mm x 12.50mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 360NH 42A 0.95 MOHM |
| Series | SRP1245A |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Carbonyl Powder |
| shielding | Shielded |
| qFactor | 15 @ 100kHz |
| selfResonantFreq | 80MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.197" (5.00mm) |
| features | - |
