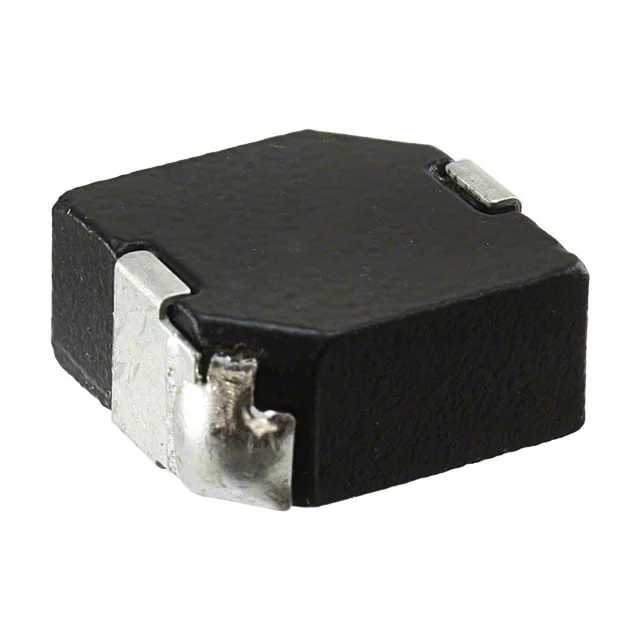

FIXED IND 5.6UH 14A 10 MOHM SMD
| Inductance | 5.6 µH |
| Tolerance | ±20% |
| Current Rating | 14 A |
| DC Resistance (DCR) | 10mOhm Max |
| saturationCurrent | 26.5A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.539" L x 0.539" W (13.70mm x 13.70mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5.6UH 14A 10 MOHM SMD |
| Series | SRP1270 |
| productStatus | Last Time Buy |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 13MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.276" (7.00mm) |
| features | - |
