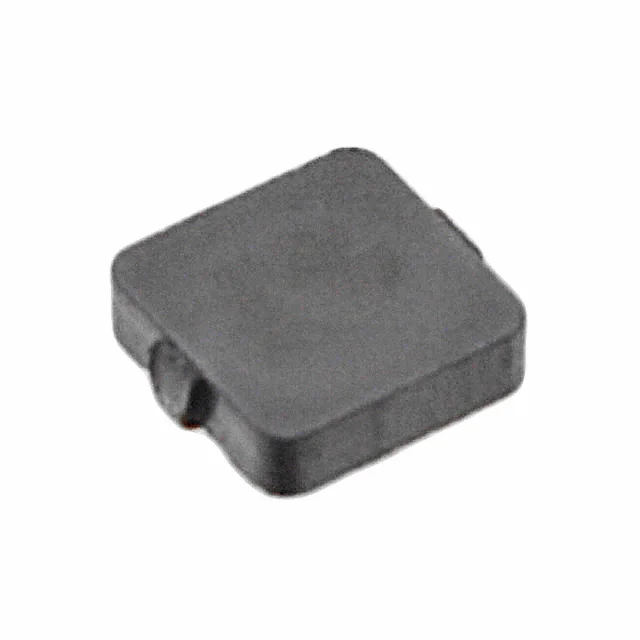

FIXED IND 1UH 4.8A 33.6 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 4.8 A |
| DC Resistance (DCR) | 33.6mOhm Max |
| saturationCurrent | 6.3A |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.185" L x 0.157" W (4.70mm x 4.00mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 4.8A 33.6 MOHM SMD |
| Series | SRP4012 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.047" (1.20mm) |
| features | - |
