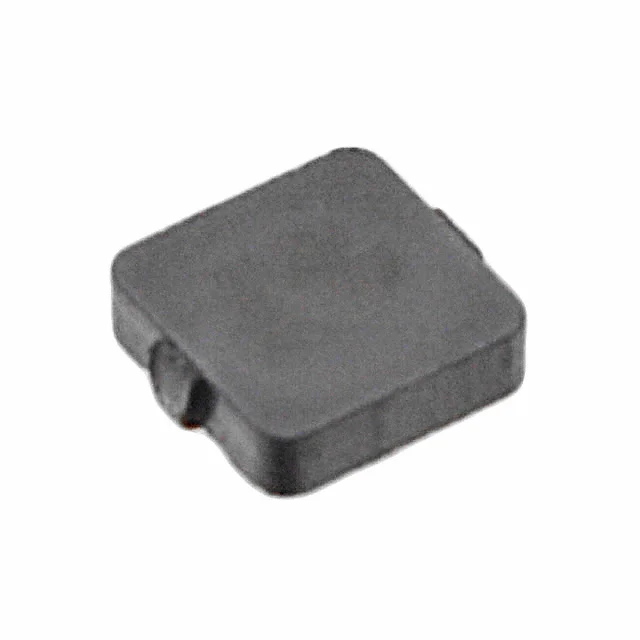

SRP4012-2R2M
Bourns Inc.
Nonstandard
Description
FIXED IND 2.2UH SURFACE MOUNT
Specifications
Inductance
2.2 µH
Dimensions
0.185" L x 0.157" W (4.70mm x 4.00mm)
Parameter Guide
Understand the key electrical and mechanical specifications for SRP4012-2R2M.
Inductance
2.2 µH
SRP4012-2R2M has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
Nonstandard
SRP4012-2R2M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRP4012-2R2M to manufacturer, series, and broader datasheet collections.
Product Attributes
Datasheet record
Last updated: 6/11/2026| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.185" L x 0.157" W (4.70mm x 4.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH SURFACE MOUNT |
| Series | SRP4012 |
| Product Status | Not For New Designs |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.047" (1.20mm) |
