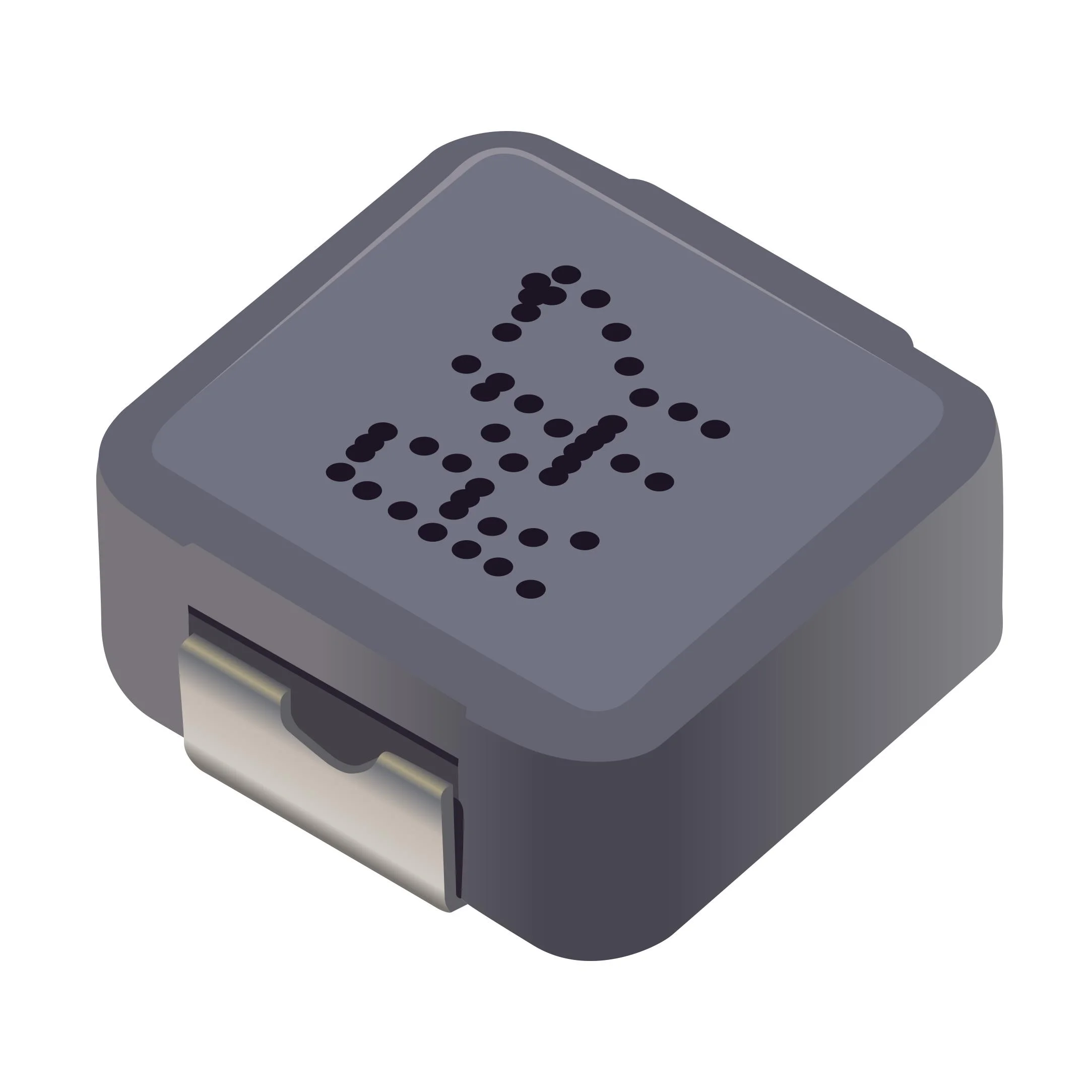

FIXED IND 1UH 7.7A 18.5 MOHM SMD
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 7.7 A |
| DC Resistance (DCR) | 18.5mOhm Max |
| saturationCurrent | 10.6A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.175" L x 0.160" W (4.45mm x 4.06mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 7.7A 18.5 MOHM SMD |
| Series | SRP4020T |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Carbonyl Powder |
| shielding | Shielded |
| qFactor | 15 @ 100MHz |
| selfResonantFreq | 72MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
